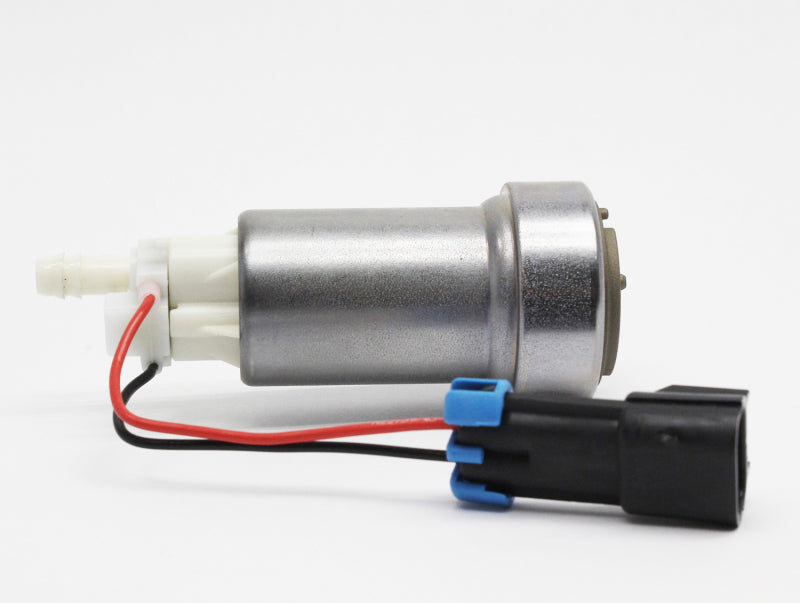

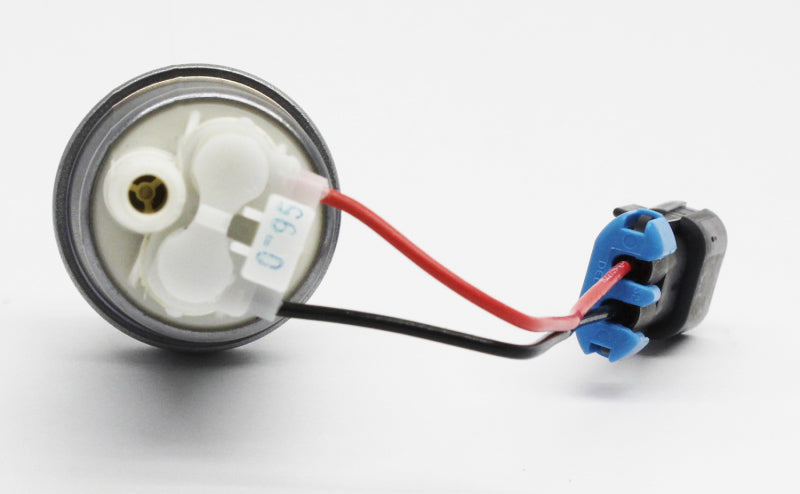

Walbro 525 LPH E85 Hellcat In-Tank Fuel Pump

11-23 Ford F-150 V6 3.5L / 15-20 V6 2.7L / 11-17 V8 5.0L / 17-23 Raptor V6 3.5L Walbro Universal 39/80 Flex Fuel Hellcat In-Tank Fuel Pump

Part Number: F90000285

If you are looking for a high-performance fuel pump that can handle the demands of your Ford F-150, look no further than the Walbro F90000285 Universal 39/80 Flex Fuel Hellcat In-Tank Fuel Pump. This pump is designed to deliver maximum pressure and flow for both gas and E85 applications, supporting up to 900+ horsepower at 60 PSI. Whether you have a naturally aspirated or a supercharged engine, this pump will provide the fuel you need to unleash the full potential of your F-150.

Key Features:

• Highest flow in-tank brushed fuel pump offering from TI Automotive
• Outperforms most in-tank fuel pumps, including the Walbro 450
• High pressure, high-flow performance unique to the “fat-bottom” pump mechanism
• Award-winning OE DCSS technology for consistent performance and reliability, found on the Dodge Hellcat
• OEM technology designed and developed for E85. All pumping components have been validated to OEM specifications for approved use in E85/Flex Fuel applications
• Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900+HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit Walbro 400-1168


Benefits:

• Improved hot fuel flow and minimal noise
• Increased efficiency and durability over conventional pumps
• Flexible fuel options for optimal performance
• Faster and easier start-ups
• Reliable fuel delivery under high-pressure and high-temperature conditions
• More power and torque for your F-150

Product Specs:

• Fuel: Flex
• Horsepower: 650 - 985
• Flow @ 276 kPa: 340 lph - 470 lph
• Flow @ 40 psi: 124 gph
• Max System Pressure (psi): 112
• Max System Pressure (kPa): 772

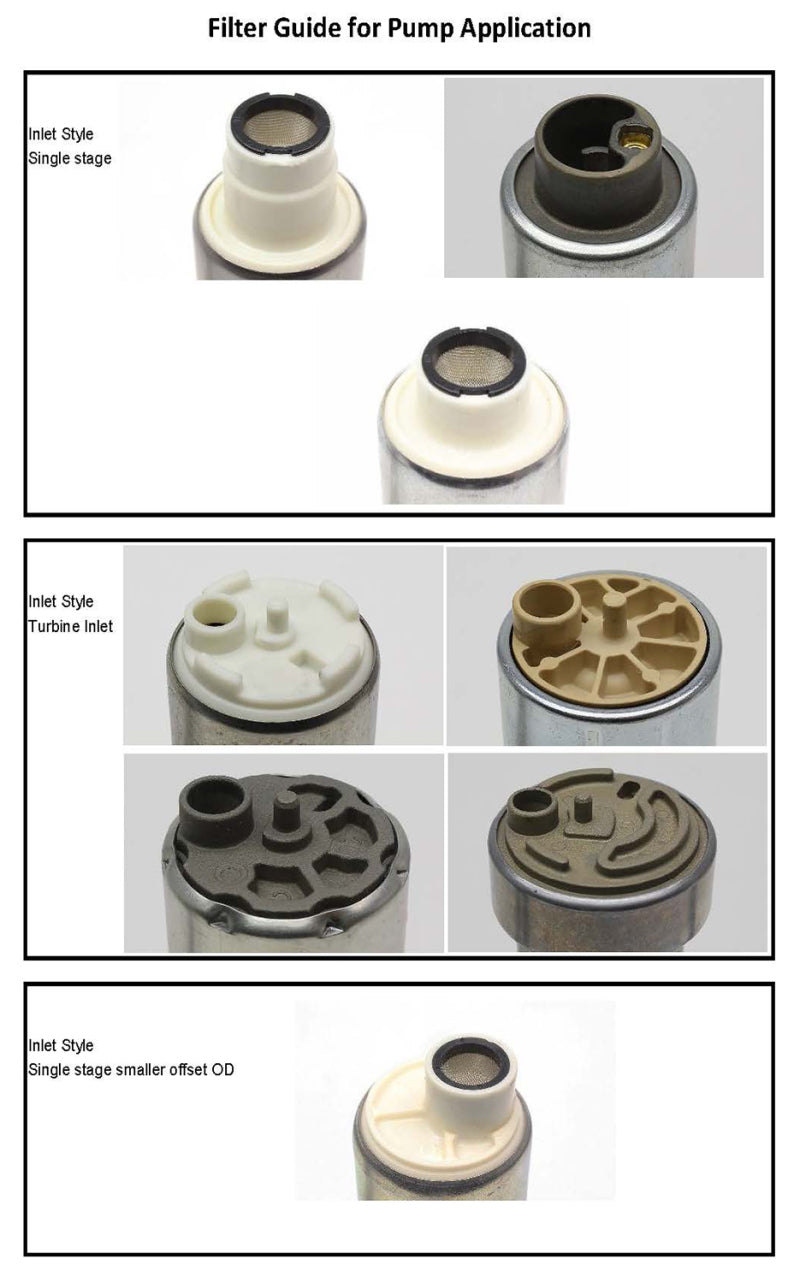

• Inlet Diameter: 39mm / 50mm
• Pump Type: In-Tank Pump Only
• Inlet Configuration: High output, in-tank pump fits most popular EFI applications


Install Difficulty Level:

The installation of this fuel pump is easy and can be done in less than an hour with basic tools. You will need to remove the stock fuel pump from the tank and replace it with the Walbro F90000285 pump. For proper installation, you will need the installation kit, part number 400-1168.

Vehicle Fitment:

This fuel pump fits the following Ford F-150 models:

• 2011-2023 Ford F-150 V6 3.5L EcoBoost
• 2015-2020 Ford F-150 V6 2.7L EcoBoost
• 2011-2017 Ford F-150 V8 5.0L Coyote
• 2017-2023 Ford F-150 Raptor V6 3.5L EcoBoost

If you have any questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.

Note: High power retrofit installations are recommended to use thicker wire and a fuel pump relay.
