Stage 2 XDI-HPFP-27-EVO Xtreme-DI High Pressure Fuel Pump

Stage 2 XDI-HPFP-27-EVO Xtreme-DI High Pressure Fuel Pump

Part Number: XDI-HPFP-27-EVO

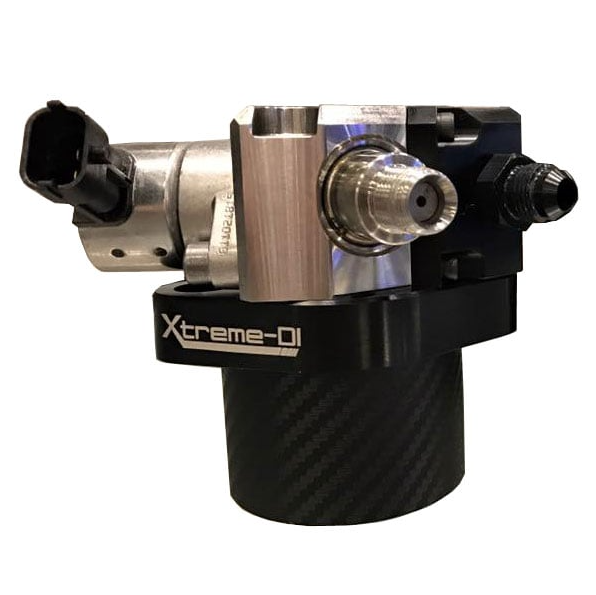

Step up your vehicle’s performance with the Stage 2 XDI-HPFP-27-EVO Xtreme-DI High Pressure Fuel Pump. This pump is a powerhouse, designed to significantly enhance fuel flow and support the most demanding modifications, including the use of ethanol-based fuels.

Key Features:

• Up to 45% more fuel flow compared to OEM pumps
• Designed to replace the Denso OEM high pressure pump
• Direct fit solution with factory inlet and high-pressure line compatibility

Benefits:

• Supports larger aftermarket turbos and ethanol blends like E85
• Maintains fuel pressure for optimal air-fuel ratio
• Comes with a robust warranty for reliability and customer satisfaction

Product Specs:

• Maximum Rail Pressure: 200bar / 2900psi
• Fuel Compatibility: All known fuels, including all Ethanol blends
• Material: Stainless steel and hard-coated aluminum
• Application Maximum Rail Pressure: 200bar / 2900psi
• Fuel Compatibility: all known fuels, all Ethanol blends
• Electric Connector: Bosch Compact 2-pin
• Driver Profile: OEM
• Mechanical Data Geometric Volume: 1.51cc / rev (depending on cam lobe)
• Maximum Flow Rate: TBC
• Housing material: stainless steel hard coated aluminum
• Aluminum O-Ring material: Viton

E85, aftermarket turbos, built motors, high horsepower...

If you any of these are on your mind, then you need an upgraded high pressure fuel pump.

This GDI high pressure pump was developed to replace the Denso OEM high pressure pump. It delivers up to 45% more fuel flow when mounted on the same CAM-Lobe. Maximum Fuel Pressure is 200bar / 2900psi, while the XDI-B007-27 is 250bar / 3625psi. The kit comes with everything you need: the HPFP, base plate, hardware and an electric pigtail. It is a true bolt on solution, factory inlet and High Pressure line fit. The swap can be done in your garage without any special tools.

XDI-E007-27 provides a 35% increase

Over the factory high pressure fuel pump. If that isn't enough, they offer the XDI-B007-27 as well. That pump is found here: LINK TO XDI-B007-27

Install Difficulty Level: Installation is a simple task that can be completed in about an hour in a home garage.

Vehicle Fitment:

• 2015 2016 2017 2018 2019 2020 F-150 2.7L Ecoboost

CARB Approval Status: This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

For any questions or to report product description inaccuracies, please contact the MPT Performance experts at (407) 636-7077 or by email.

NOTE: Tuning is recommended with this upgraded high pressure fuel pump. XDI HPFP's are custom built and can take 6-8 weeks to ship.
