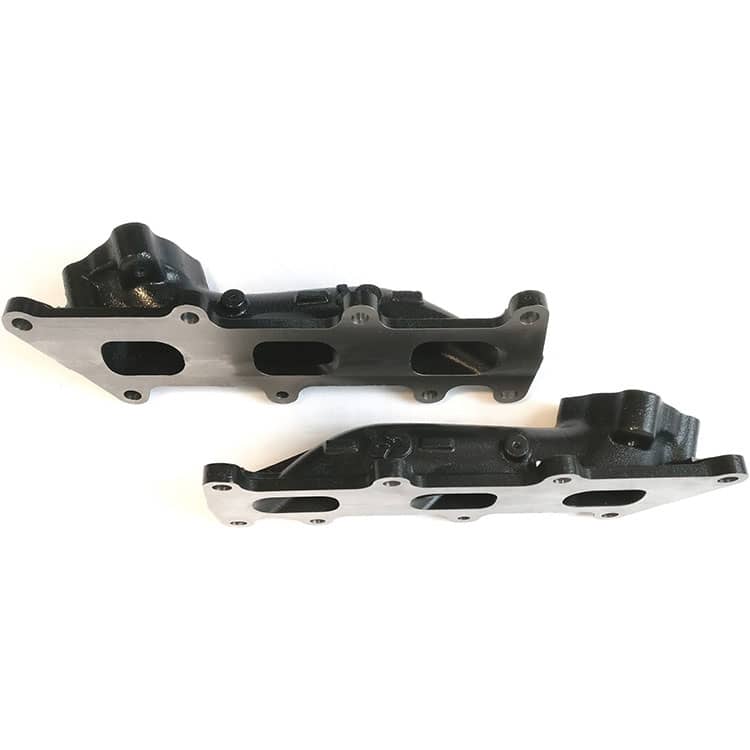

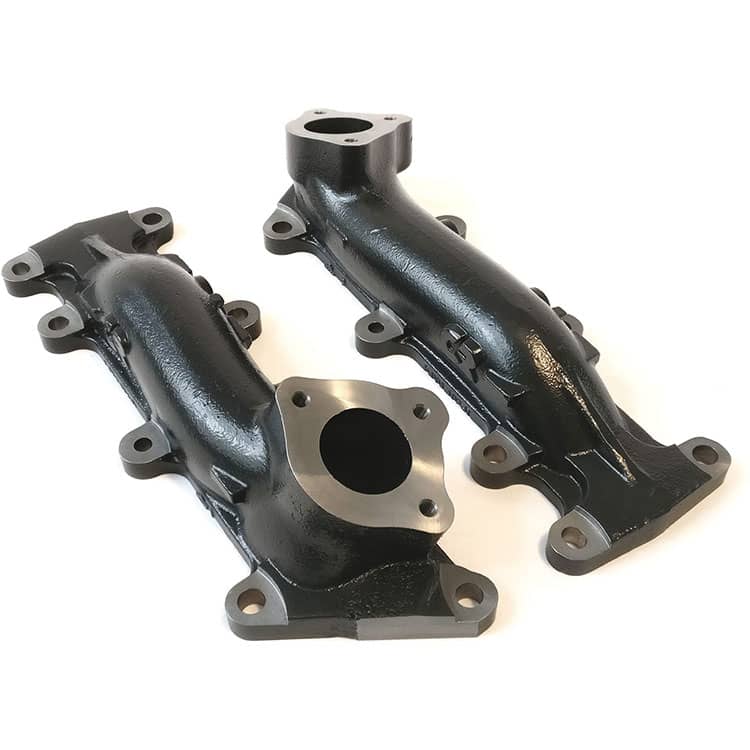

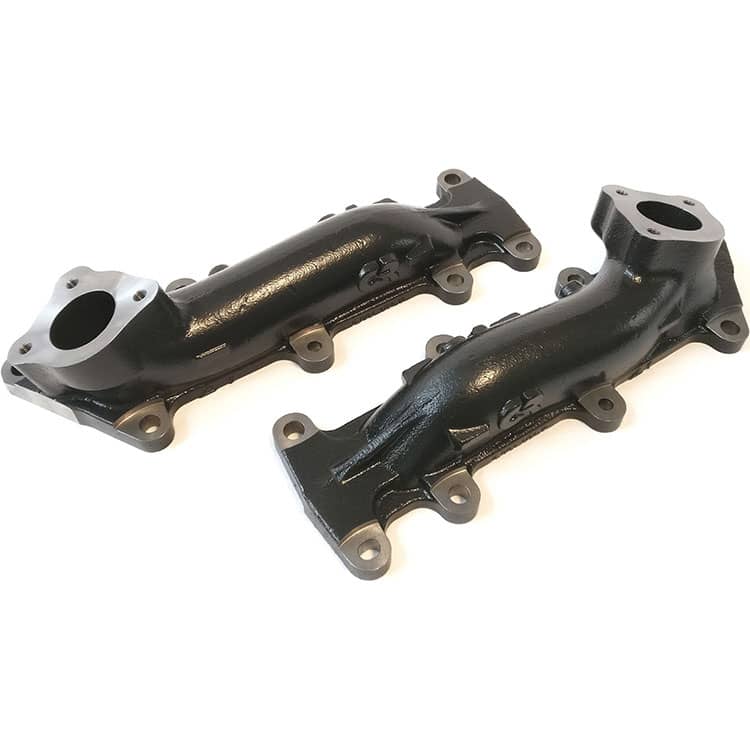

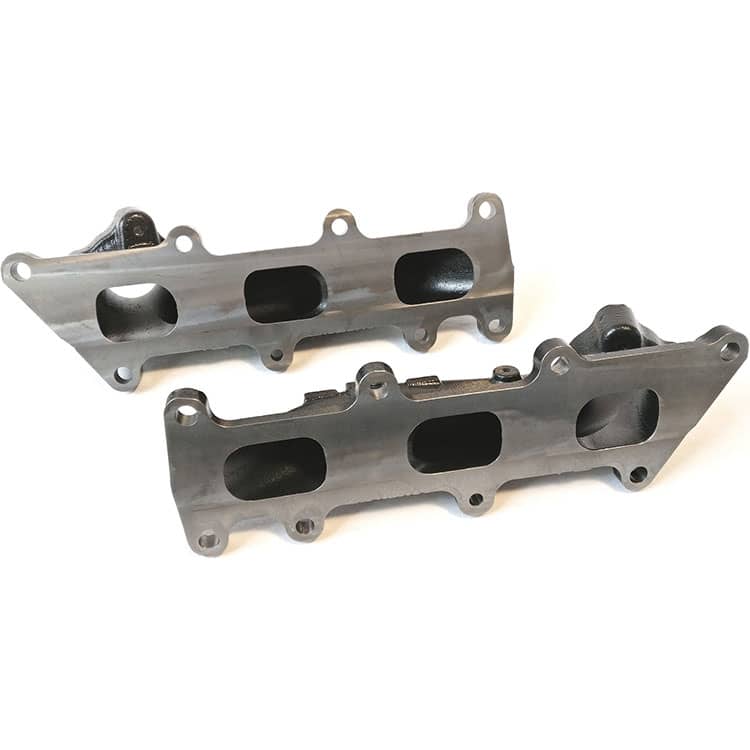

CR Performance Full Bore Upgrade Manifold Set for 2017-2020 Ford Raptor / F-150 3.5L Ecoboost

CR Performance Full Bore Upgrade Manifold Set for 2017-2020 Ford Raptor / F-150 3.5L Ecoboost

CR Performance Part #:

• 5 001 17X - 2017-2020 Ford F150 3.5L Ecoboost / 2018-2020 Ford Expedition 3.5L Ecoboost
• 5 001 17X-R - 2017-2020 Ford Raptor 3.5L Ecoboost

Unleash your Ecoboost's Full Potential with CRP's Full Bore 3.5L V6 EcoBoost Performance Manifolds

Features:

• High performance, larger runners offer 30% more flow area over stock with no restriction throughout the RPM range
• Ready to support over 800 HP of flow
• 3-5 lbs/min flow increase typical on performance use and greater gains with upgraded turbos
• Quicker spool times
• Removes restriction of cylinders with efficient D porting geometry
• Port matched to turbocharger turbine housing (Unlike OEM Manifolds)
• Thick wall durable High Sil Steel resists warping without cracking
• Dyno proven gains on completely stock truck with no tune of 23 RWHP 32 RW lb-ft peak with massive area under the curve at 368 RWHP & 428 ft-lbs
• Users can expect exponential increased gains when matched with other performance products that push flow past the stock manifold abilities or in combination with tuning

What's Included:

• 1x Performance Drivers Side Manifold
• 1x Performance Passenger Side Manifold
• 16x W712244-S300 / W719078-S900 – Manifold Stud F150 3.5L
• 16x W701706-S440 – Grade 10 Locking Manifold Nut
• 1x Install Manual

Click Here for Installation Instructions

Professional installation is highly recommended with this modification.

Ford OEM Manifold Part #:

• HL3Z-9431-A, JL3Z-9431-C, JL7Z-9431-C
• HL3Z-9430-A, JL3Z-9430-C, JL7Z-9430-B

OEM Gaskets and Required hardware:

• 1x HL7Z-9448-B 2017-2020 DS F150 3.5L Manifold Gasket (L / Driver's Side)
  1x HL7Z-9448-A 2011-2020 PS F150 3.5L Manifold Gasket (R / Passenger Side)
• 2x HL3Z-9T516-A 2017+ F150 3.5L Turbocharger Oil Inlet Feed Seal
  2x FT4Z-6N652-E 2017+ F150 3.5L Turbocharger Oil Drain Seal #1
  2x HL3Z-00815-A 2017+ F150 3.5L Turbocharger Oil Drain Seal #2
• 6x FT4Z-6N652-D 2017+ F150 3.5L Water Inlet & Outlet Tube Seal #1
  4x HL3Z-6N652-A 2017+ F150 3.5L Water Inlet & Outlet Tube Seal #2
• 6x W715673-S900 2017+ Turbocharger Mounting Bolt F150 3.5L & Raptor
  4x W520514-S440 2017+ Downpipe Nut F150 3.5L (Recommended)

Required Only if the Downpipe Adaptor is Separated / New Turbochargers are Installed:

• 2x BL3Z-9450-A 2017+ F150 3.5L Down Pipe Gasket
• 4x W716667-S900 2017+ Downpipe Stud F150 3.5L

2017 F-150 / Raptor Requirements:

• 1x HL3Z-9448-C 2017 F150 3.5L Turbo Turbine Inlet Gasket (L / Driver's Side)
  1x HL3Z-9450-A 2017 F150 3.5L Turbo Turbine Inlet Gasket (R / Passenger's Side)

2018-2020 F150 / Raptor Requirements:

• 2x JL3Z-9450-A 2018+ F150 3.5L Turbo Turbine Inlet Gasket (L / Driver's Side) & (R / Passenger's Side)

CARB Approval Status: This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

For any questions or to report inaccuracies in the product description, please contact MPT Performance experts at (407) 636-7077 or by email.

Please Note: There is a mandatory shipping charge of $59.99 with this product to any location outside of Canada.
