24-25 Ford Ranger Raptor ICON IVD6140 Front Coilover Spacer Kit - 2.25in Lift

24-25 Ford Ranger Raptor ICON IVD6140 Front Coilover Spacer Kit – 2.25" Lift (Part Number: IVD6140)

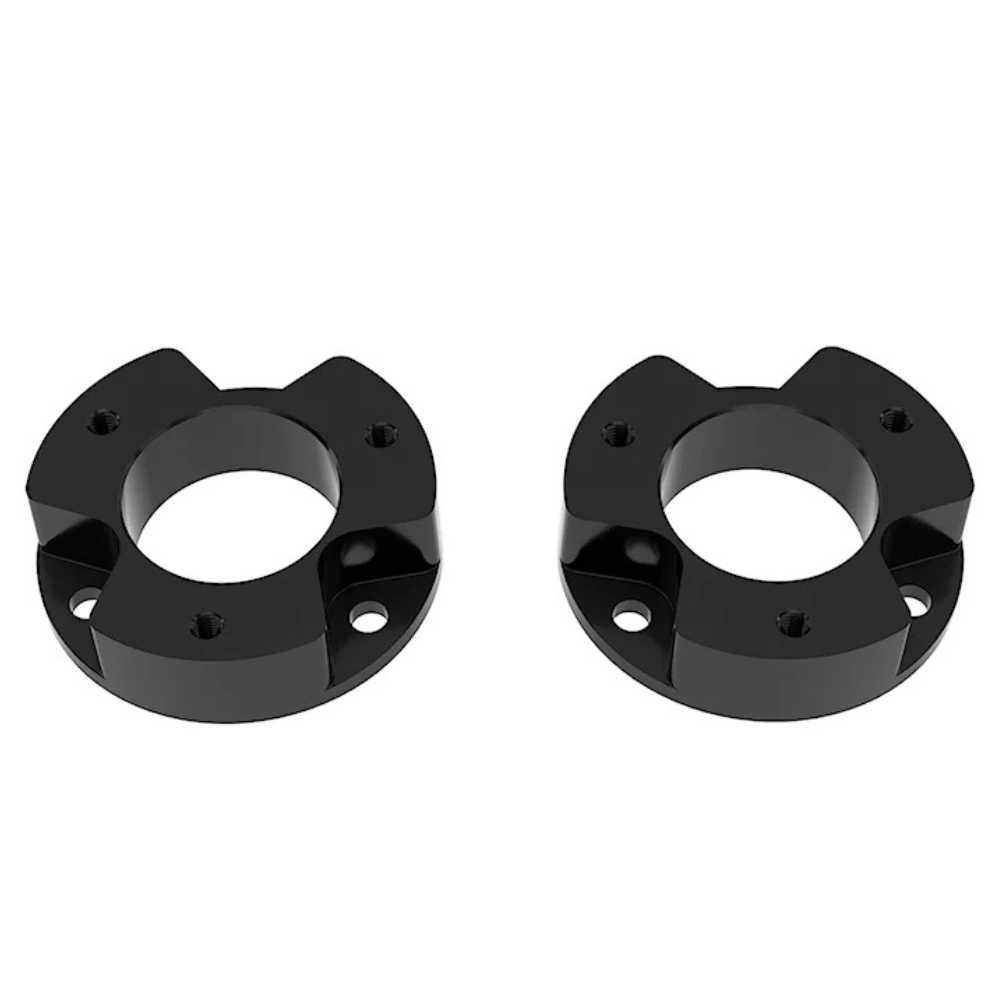

The ICON 2.25-inch Front Coilover Spacer Kit is a precision-engineered upgrade designed specifically for 2024–2025 Ford Ranger Raptor trucks looking to achieve a more aggressive stance without compromising factory ride quality. By utilizing the OE coilover shock assemblies, this kit delivers a cost-effective and efficient lift solution while maintaining full compatibility with the factory electronic suspension system. Constructed from CNC-machined 6061 billet aluminum and finished with a durable black anodized coating, this spacer kit not only enhances front-end height by 2.25 inches but also improves ground clearance and allows for larger wheel and tire combinations. Designed to avoid overextending suspension components, it preserves proper geometry, prevents CV joint over-cycling, and ensures long-term reliability—making it an ideal upgrade for enthusiasts seeking performance, durability, and style.

Key Features

• Vehicle-specific design for 2024–2025 Ford Ranger Raptor with OE coilovers
• Provides 2.25-inch front lift for improved stance and clearance
• Retains full functionality of factory electronic shock system
• Prevents upper control arm ball joint overextension
• Minimizes CV joint stress at full suspension extension
• Allows fitment of larger, more aggressive wheels and tires
• CNC-machined from high-strength 6061 billet aluminum
• Corrosion-resistant black anodized finish
• Maintains factory ride quality and suspension travel

Benefits

• Achieves a leveled, aggressive off-road stance
• Enhances front ground clearance for improved trail capability
• Supports larger tire fitment (up to 35” with minor modifications)
• Preserves factory suspension performance and comfort
• Reduces long-term wear on critical suspension components
• Cost-effective alternative to full suspension replacement
• Backed by ICON’s Limited Lifetime Warranty for peace of mind

Product Specifications

• Lift Height: 2.25 inches (front)
• Material: 6061 billet aluminum
• Finish: Black anodized
• Position: Front suspension
• Compatibility: OE coilover shock assemblies only
• Shipping Dimensions: 14" L x 7" W x 3" H
• Shipping Weight: 12 lbs
• Recommended Tire Size: Up to 35" x 11.50" (minor trimming may be required)
• Recommended Wheel Specs:
  • 17x8.5" with 6.32" backspacing / 40mm offset
  • 18x9" with 6.6" backspacing / 40mm offset

Install Difficulty Level
Installation is straightforward and typically takes approximately 2–3 hours using basic hand tools and standard mechanical knowledge. No major modifications are required since the kit is designed to work with factory components. Professional installation is not necessary, but recalibration of the Advanced Driver Assistance Systems (ADAS) is required after installation to maintain proper functionality.

Vehicle Fitment

• 2024–2025 Ford Ranger Raptor
• Engine: All available engines
• Drivetrain: All configurations equipped with OE front coilovers
• Notes:
  • Only compatible with factory (OE) coilover shocks
  • Will not fit aftermarket coilover systems
  • Supports up to 35” tires with minor fender trimming
  • Requires ADAS recalibration after installation
