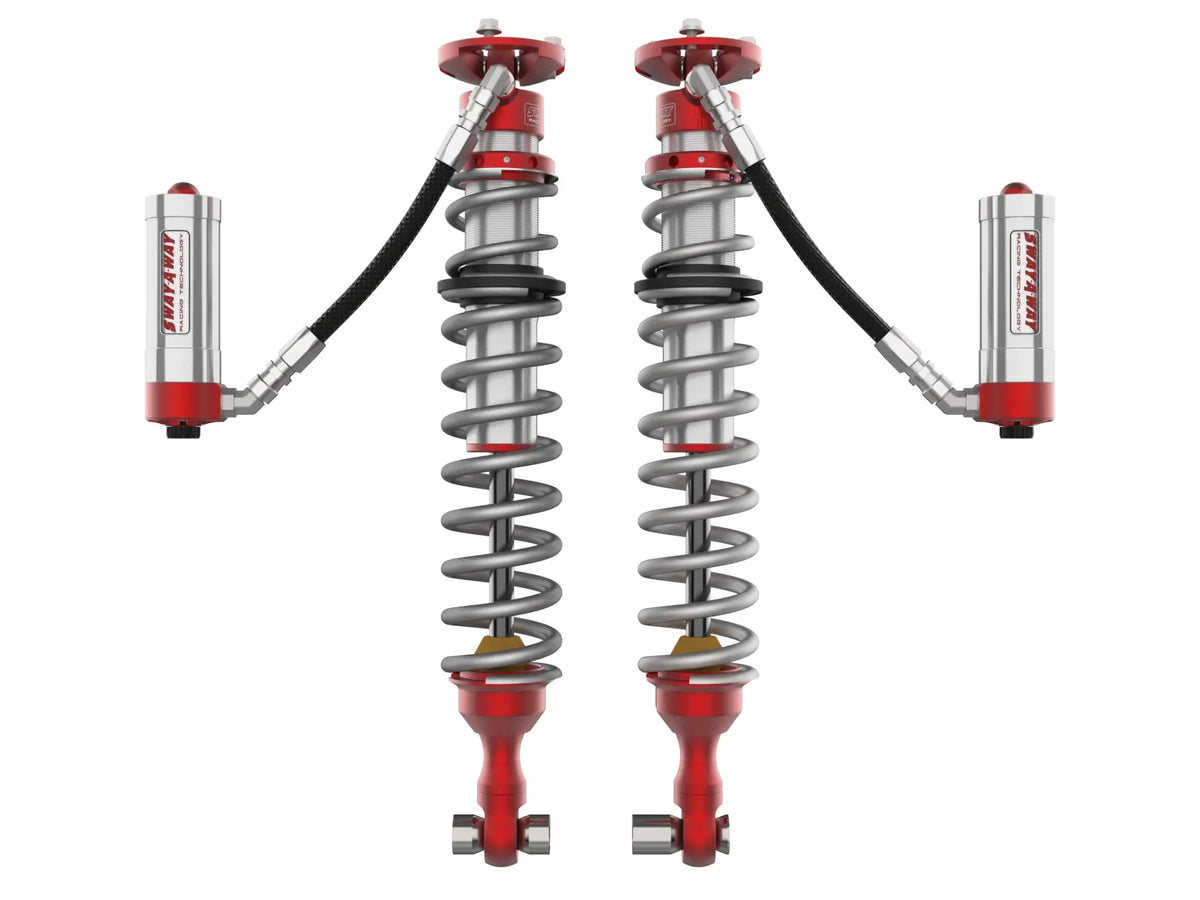

21-26 Ford Bronco aFe 302-0056-13-CA Sway-A-Way 2.5 Rear Remote Reservoir Coilover Kit with Compression Adjusters

aFe Control Sway-A-Way 2.5 Rear Remote Reservoir Coilover Kit with Compression Adjusters

Part Number: 302-0056-13-CA

Upgrade the suspension performance of the 2021-2026 Ford Bronco with the aFe Control Sway-A-Way 2.5 Rear Remote Reservoir Coilover Kit with Compression Adjusters. Engineered using over 20 years of race-proven suspension technology, this premium rear coilover system delivers exceptional ride quality, increased wheel travel, and precise damping control without sacrificing everyday comfort. Designed as a direct-fit replacement, this kit installs without permanent vehicle modifications while providing adjustable ride height from 1 to 3 inches of lift. Featuring remote reservoirs, 16-click compression adjusters, dual-rate springs, premium synthetic shock oil, and rebuildable construction, this suspension upgrade is ideal for serious off-road enthusiasts, overland builds, and daily-driven Broncos seeking superior handling, durability, and performance.

Key Features

• Direct-fit 2.5-inch rear remote reservoir coilover kit for 2021-2026 Ford Bronco.
• Ride height adjustable from 1.0 to 3.0 inches using the included spanner wrench.
• Preset at approximately 2.0 inches of lift for quick installation.

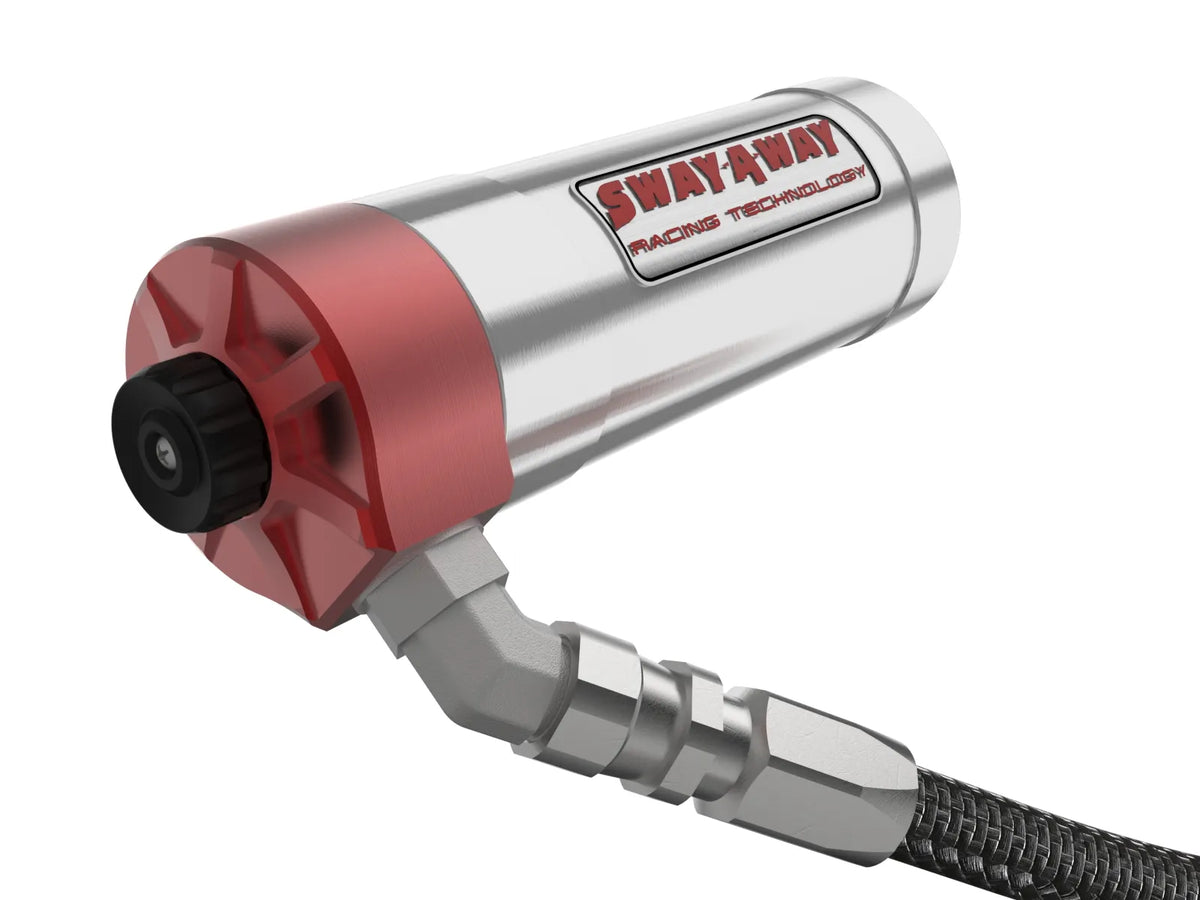

• Remote reservoirs improve cooling and shock performance during demanding off-road use.
• Mid-speed compression adjusters provide 16 clicks of tuning with up to 200% increase in damping force.
• Application-specific damping delivers excellent on-road comfort and outstanding off-road control.
• Dual-rate springs improve ride comfort while increasing load carrying capability.
• Designed to provide up to 11.5 inches of rear wheel travel while using factory rear control arms.

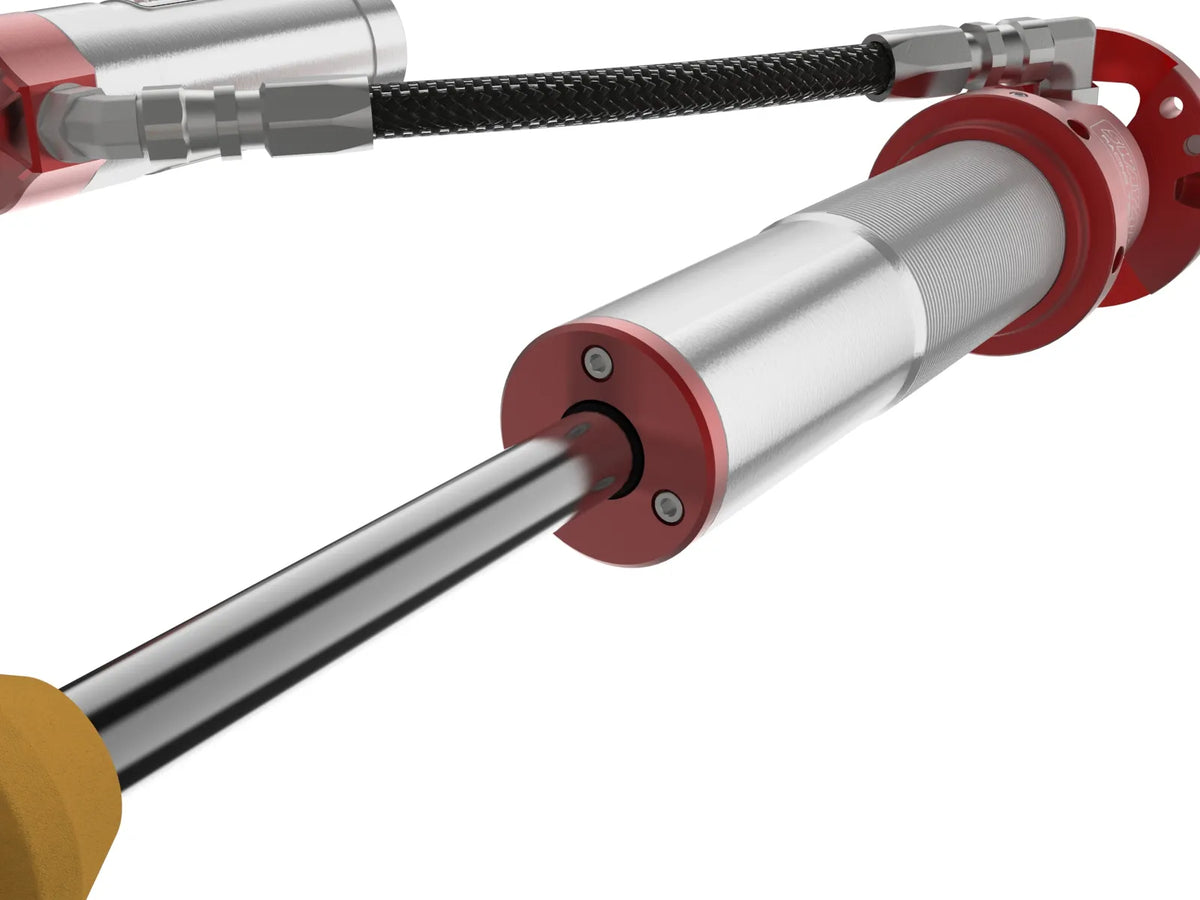

• 7/8-inch polished Nitro Steel shafts offer exceptional strength and durability.
• Billet 6061-T6 aluminum compression adjuster housing with corrosion-resistant red anodized finish.
• CNC-machined 7075-T6 aluminum metering piston for long service life.
• Specifically formulated 7wt fully synthetic shock oil maintains consistent damping performance.
• Multi-seal carrier with Viton O-rings helps prevent contamination and oil leakage.
• Fully rebuildable and revalveable by a trained professional.
• Designed and built in the USA.
• No drilling, cutting, or permanent vehicle modifications required.

Benefits

• Delivers outstanding suspension control for rock crawling, overlanding, trail riding, and highway driving.
• Allows quick suspension tuning to match changing terrain, cargo weight, or driving style.
• Improves ride quality, stability, and driver confidence on and off the pavement.
• Enhances suspension articulation while maintaining excellent everyday drivability.
• Premium corrosion-resistant materials provide long-lasting durability in harsh environments.
• Rebuildable design helps maximize long-term service life and overall value.
• Backed by aFe Control's manufacturer warranty against defects in materials and workmanship for eligible products. Warranty terms and conditions apply.


Product Specifications

• Part Number: 302-0056-13-CA
• Product Type: Rear Remote Reservoir Coilover Kit
• Shock Body Diameter: 2.5 inches
• Ride Height Adjustment: 1.0 to 3.0 inches of rear lift
• Preset Lift Height: Approximately 2.0 inches
• Wheel Travel: Up to 11.5 inches
• Compression Adjustment: 16-click mid-speed compression adjusters
• Damping Increase: Up to 200%
• Shock Shaft Diameter: 7/8 inch
• Shock Shaft Material: Polished Nitro Steel
• Shock Oil: 7wt fully synthetic
• Spring Design: Dual-rate coil springs
• Housing Material: High-strength steel
• Compression Adjuster Housing: Billet 6061-T6 aluminum
• Metering Piston Material: CNC-machined 7075-T6 aluminum
• Seal Design: Multi-seal carrier with Viton O-rings
• Finish: Zinc-plated steel bodies with red anodized aluminum components
• Reservoir Type: Remote reservoir
• Adjustable: Yes
• Rebuildable: Yes
• Installation: Direct bolt-on
• Country of Manufacture: USA

Install Difficulty Level

This direct-fit rear coilover kit is designed to make installation straightforward for enthusiasts with basic to moderate mechanical experience. No cutting, drilling, or fabrication is required, and the kit installs using factory mounting locations. Under ideal shop conditions, installation can be completed in as little as 2 hours, making it an excellent weekend suspension upgrade.

Vehicle Fitment

2021-2026 Ford Bronco

• 2.3L EcoBoost Turbocharged I4 Gas
• 2.7L EcoBoost Twin-Turbo V6 Gas

Fitment Notes:

• Compatible with factory rear control arms.
• Ride height is adjustable from 1 to 3 inches using the included spanner wrench.
• Lift height may vary depending on vehicle trim level and factory equipment.
• A track bar relocation bracket is recommended when adjusting lift height above 2.0 inches.
