21-25 Ford F-150 Raptor 3.5L EB ICON 95003 1-3" Lift, Front, V.S. 3.0 Series Coilover Kit, Remote Reservoir w/ CDEV

ICON 2021-2025 Ford F-150 Raptor 1-3" Lift Front V.S. 3.0 Series Coilover Kit with Remote Reservoir and CDEV - Part Number 95003

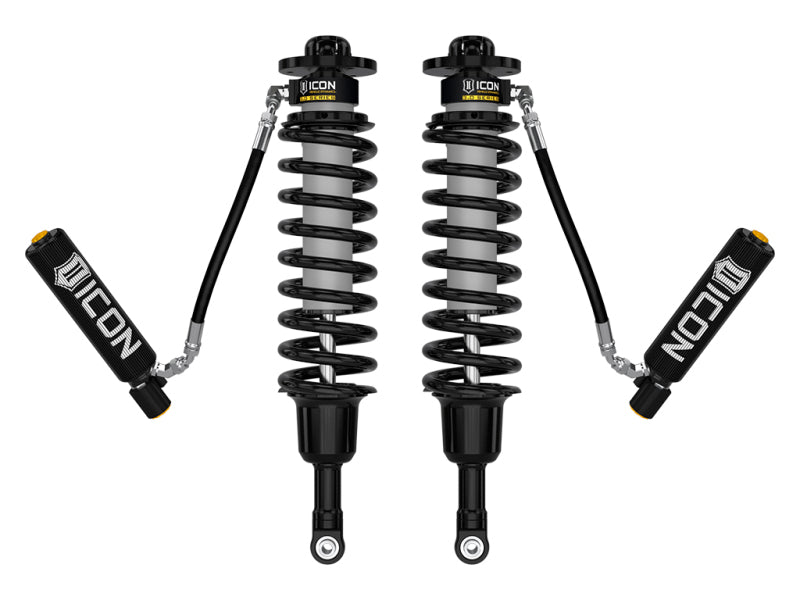

The ICON Vehicle Dynamics 95003 3.0 Series Front Coilover Kit is engineered specifically for the Gen 3 Ford F-150 Raptor to provide adjustable front lift height, increased shaft travel, and refined suspension performance on and off the road. The redesigned coilover uses a barreled coil spring for efficient packaging while providing 1-3 inches of front lift adjustment. Vehicle-specific valving, an ICON-engineered coil spring, 10-inch finned aluminum remote reservoirs, and Compression Damping Electronic Valve (CDEV) technology work together to deliver improved ride quality, damping control, cooling, and bottom-out resistance. The CDEV system, powered by ICON Intelligent Control (IIC) and the ICON mobile app, allows highly precise compression damping adjustments for a more customized balance of comfort and performance.

Key Features

• Adjustable front coilovers provide 1-3 inches of front lift height.
• Increased wheel travel and vehicle-specific valving are designed for strong on-road ride quality and off-road performance.
• Compression Damping Electronic Valve (CDEV) technology provides in-vehicle compression damping adjustment through ICON Intelligent Control (IIC).
• CDEV can react in less than 40 milliseconds for precise damping adjustments across changing terrain.
• Superior low-speed control helps reduce body roll and improve on-road stability.

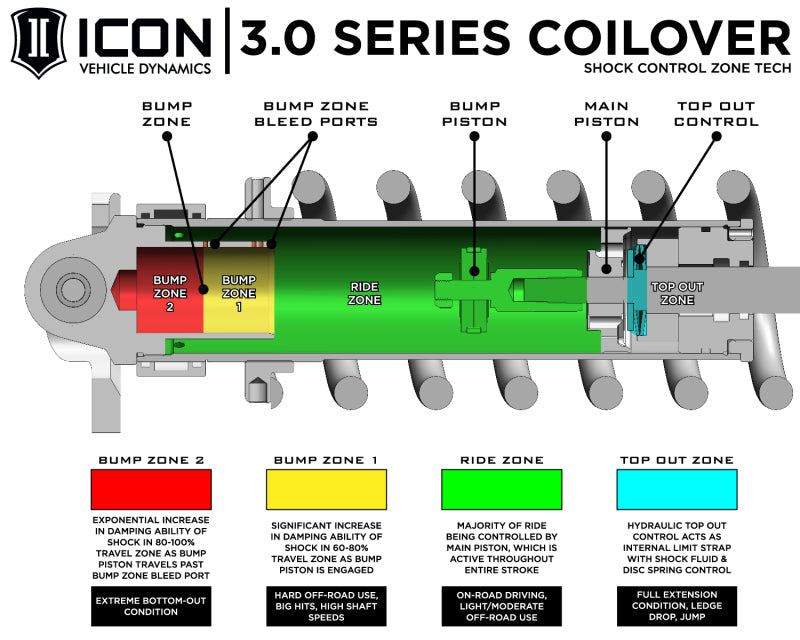

• ICON multi-stage hydraulic "Bump Zone" increases damping ability during the final 40% of compression travel for improved bottom-out resistance.

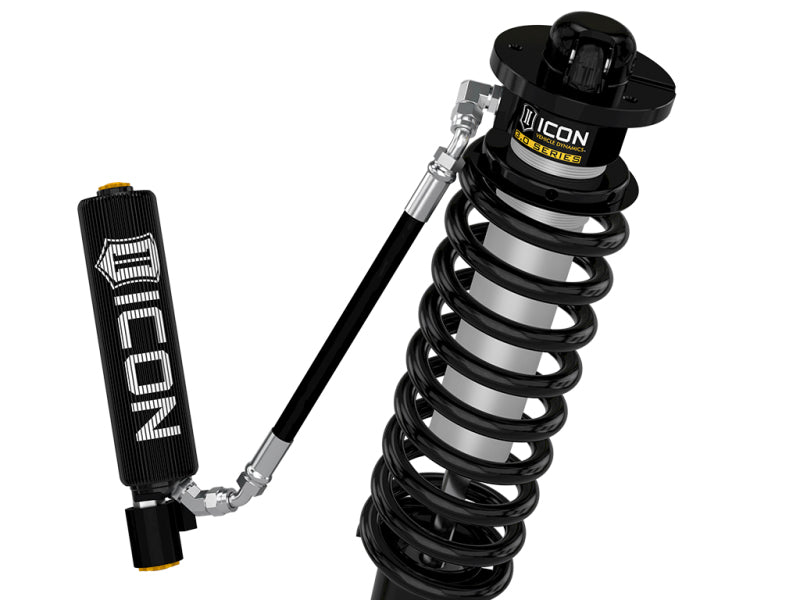

• 10-inch finned aluminum remote reservoirs provide increased oil volume and surface area for improved cooling and consistent damping during aggressive off-road driving.
• Barreled coil spring design maximizes travel while allowing efficient packaging.
• Heavy-duty CNC-machined 1-inch shock shafts provide a robust suspension platform.
• FK Rod End COM12 spherical bearings are designed for strength and durability.
• Cerakoted shock bodies feature hard-anodized pistons and top caps.
• Fully serviceable design allows for revalves and rebuilds.
• Bolt-in design fits the OEM shock location.
• "ICON 1K" testing validates tune, performance, strength, and durability under rigorous off-road conditions.

Benefits

• Adjustable 1-3 inch front lift height allows the Raptor's stance and suspension height to be tailored to the vehicle setup.
• Increased shaft travel helps maximize suspension capability while maintaining efficient packaging.
• Vehicle-specific shock valving and ICON-engineered coil springs provide a performance-focused balance between street comfort and off-road control.
• Remote reservoirs help manage heat during demanding off-road use for more consistent damping performance.
• CDEV and ICON Intelligent Control allow damping settings to be adjusted independently from the selected vehicle drive mode for a more personalized suspension setup.
• The hydraulic Bump Zone provides additional resistance as the suspension approaches the end of compression travel, helping improve control over hard impacts.
• ICON-engineered coil springs are guaranteed for life against sagging or breakage.
• The fully serviceable design supports future rebuilding and revalving for long-term suspension serviceability.
• The bolt-in configuration is designed for installation in the OEM shock location.

Product Specifications

• Brand: ICON Vehicle Dynamics
• Part Number / Proxy Number: 95003
• UPC: 840103435497
• Product Type: Front 3.0 Series coilover kit
• Lift Height: 1-3 inches front lift for applicable 3.5L applications; 0.75-2.75 inches for applicable 5.2L applications
• Reservoir Type: Remote reservoir
• Reservoir Size: 10-inch finned aluminum reservoirs
• Shock Shaft: 1-inch CNC-machined shock shaft
• Spring Design: Barreled coil spring
• Shock Body Finish: Cerakoted
• Piston and Top Cap: Hard anodized
• Bearing: FK Rod End COM12 spherical bearing
• Damping Technology: Compression Damping Electronic Valve (CDEV)
• Control System: ICON Intelligent Control (IIC) and ICON mobile app
• Serviceability: Fully serviceable; supports revalves and rebuilds
• Wheel Fitment: OEM wheels and tires supported
• Recommended Aftermarket Wheels: ICON Alloys 17x8.5 inches with 5-inch backspace / 6mm offset
• Recommended Aftermarket Wheels: ICON Alloys 18x9 inches with 5.25-inch backspace / 6mm offset
• Recommended Tire Size: Up to 35 x 12.50 inches
• Shipping Width: 15 inches
• Shipping Length: 33 inches
• Shipping Depth: 11 inches
• Shipping Weight: 85 pounds
• Color: Not specified in the supplied product specifications
• Primary Material: Not specified in the supplied product specifications

Install Difficulty Level

The ICON 95003 uses a bolt-in design for the OEM shock location, making the installation relatively straightforward for an experienced suspension installer. ICON installation instructions list an approximate installation time of 1.75 hours. Professional installation is recommended, and the vehicle requires Advanced Driver Assistance Systems (ADAS) recalibration after installation. An iOS-operated device is also required to run the ICON Intelligent Control app.

Vehicle Fitment

2021-2022 Ford F-150 Raptor: Front application. The supplied fitment information does not specify an engine for these model years. Raises the front 1-3 inches. Requires part number 95020, part numbers 93500, 95206L, and 95206R, ADAS recalibration after installation, and an iOS-operated device for the ICON Intelligent Control app. Up to 35 x 12.50-inch tires are supported; 37 x 12.50-inch tires require a bump stop spacer kit. A 6mm-offset aftermarket wheel is recommended.

2023 Ford F-150 Raptor 3.5L: Front application. Raises the front 1-3 inches. Requires part number 95020, part numbers 93500, 95206L, and 95206R, ADAS recalibration after installation, and an iOS-operated device for the ICON Intelligent Control app. Up to 35 x 12.50-inch tires are supported; 37 x 12.50-inch tires require a bump stop spacer kit. A 6mm-offset aftermarket wheel is recommended.

2023 Ford F-150 Raptor 5.2L: Front application. Raises the front 0.75-2.75 inches. Requires part number 95020, part numbers 93500, 95206L, and 95206R, ADAS recalibration after installation, and an iOS-operated device for the ICON Intelligent Control app. Up to 35 x 12.50-inch tires are supported; 37 x 12.50-inch tires require a bump stop spacer kit. A 6mm-offset aftermarket wheel is recommended.

2024-2026 Ford F-150 Raptor 3.5L with 37 Performance Package: Front application. Raises the front 1-3 inches. Requires a damper interface device that is not currently offered by ICON but is available from other third-party manufacturers, plus part numbers 93500, 95206L, and 95206R. ADAS recalibration is required after installation, and an iOS-operated device is required for the ICON Intelligent Control app. Up to 35 x 12.50-inch tires are supported; 37 x 12.50-inch tires require a bump stop spacer kit. A 6mm-offset aftermarket wheel is recommended.

2024-2026 Ford F-150 Raptor 3.5L without 37 Performance Package: Front application. Raises the front 1-3 inches. Requires part number 95020, part numbers 93500, 95206L, and 95206R, ADAS recalibration after installation, and an iOS-operated device for the ICON Intelligent Control app. Up to 35 x 12.50-inch tires are supported; 37 x 12.50-inch tires require a bump stop spacer kit. A 6mm-offset aftermarket wheel is recommended.

2024-2026 Ford F-150 Raptor 5.2L: Front application. Raises the front 0.75-2.75 inches. Requires a damper interface device that is not currently offered by ICON but is available from other third-party manufacturers, plus part numbers 93500, 95206L, and 95206R. ADAS recalibration is required after installation, and an iOS-operated device is required for the ICON Intelligent Control app. Up to 35 x 12.50-inch tires are supported; 37 x 12.50-inch tires require a bump stop spacer kit. A 6mm-offset aftermarket wheel is recommended.

Important Application Notes

• Advertised lift height ranges apply to a stock-equipped vehicle. Additional vehicle weight from accessories can alter the available lift range.
• Shocks are fully serviceable.
• Vehicles equipped with single-solenoid OE shock absorbers require ICON solenoid mount kit part number 95020.
• Vehicles equipped with dual-solenoid OE shock absorbers require a damper interface device that is not currently offered by ICON but is available from other third-party manufacturers.
• When running 37-inch tires, front up-travel limiter part number 611077 is required.
• When running larger than 37-inch tires, or for very aggressive off-road use with 37-inch tires, front up-travel limiter part number 611078 is required.
• 37-inch or larger tires may require coilover bump stop spacers, trimming, and additional modifications.
• Applicable IIC components and CDEV rear shocks are required for the system.

For questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
