21-24 Ford F150 4WD ICON 91724 3in Lift 2.5 VS IR Coilover Kit

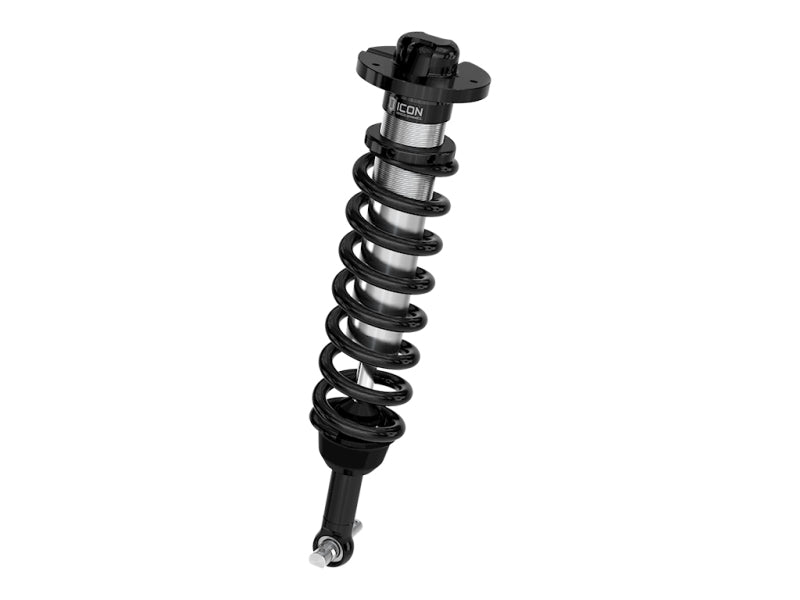

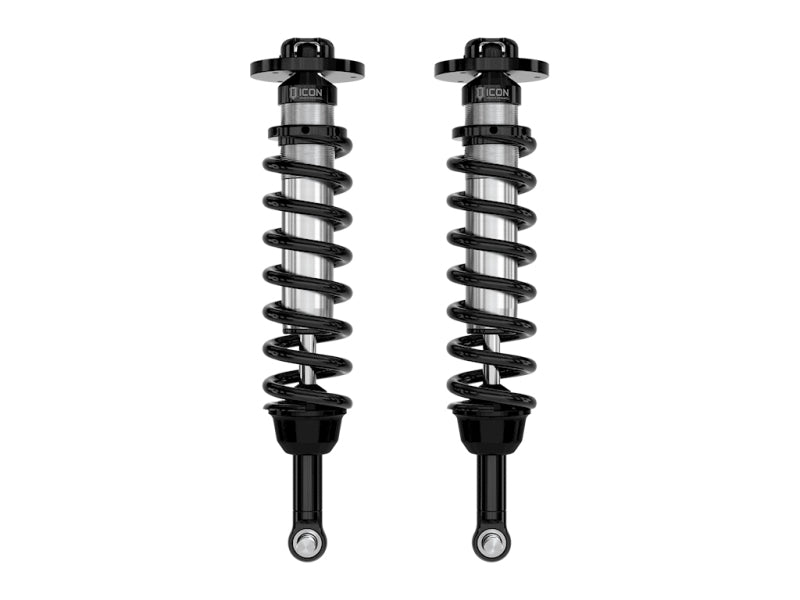

ICON 91724 3in Lift 2.5 VS IR Coilover Kit

If you are looking for a high-performance suspension upgrade for your 2021-2024 Ford F-150 4WD truck, you should consider the ICON 91724 3in Lift 2.5 VS IR Coilover Kit. This kit features ICON’s Vehicle-specific valving that provides a sport-tuned feel on and off-road, while allowing you to adjust the lift height from 2.75 to 3.5 inches over stock. This means you can fit larger and more aggressive wheels and tires on your F-150, giving it a more rugged and powerful look.

The ICON 91724 3in Lift 2.5 VS IR Coilover Kit also offers improved damping ability and outstanding ride quality across varying types of terrain, thanks to the larger 2.5-inch shock body and increased piston area over stock components. The internal nitrogen reservoir ensures consistent performance under hard use, while the ICON engineered coil springs deliver optimal spring rate and ride comfort. The kit also includes FK rod end bearings for extended longevity and minimal deflection, 6061 aircraft grade aluminum CNC machined components, corrosion resistant CAD plated shock body with 7/8-inch shaft, high strength alloy CNC machined lower bar pin, and 100% bolt-on installation with no drilling, cutting, or welding required.

Key Features:

• ICON Vehicle-specific valving for superior shock damping and control
• Adjustable for 2.75-3.5 inches of lift height over stock
• Internal nitrogen reservoir for consistent performance under hard use
• ICON engineered coil springs for optimal spring rate and ride comfort
• FK rod end bearings for extended longevity and minimal deflection
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8-inch shaft
• High strength alloy CNC machined lower bar pin
• 100% bolt-on installation with no drilling, cutting, or welding required

Benefits:

• Increased wheel travel and ride quality over stock
• Enhanced handling and stability on and off-road
• Ability to fit larger and more aggressive wheel and tire combinations
• Customizable lift height to suit your preference and needs
• Durable and reliable performance in harsh conditions
• Backed by ICON’s limited lifetime warranty against manufacturer defects

Product Specs:

• Part Number: 91724
• Product Type: Coilover Shock Kit
• Product Series: V.S. Series 2.5
• Product Fitment: Front
• Lift Height Range: 2.75-3.5 inches
• Shock Body Size: 2.5 inches
• Shock Shaft Size: 7/8 inch
• Coil Spring Diameter: 3 inches
• Coil Spring Rate: 700 lbs/in
• Reservoir Type: Internal
• Valving Type: Vehicle-specific
• Mounting Type: Bolt-on
• Material: Aluminum, Steel
• Finish: CAD Plated, Anodized
• Color: Silver, Blue
• Weight: 51 lbs
• Dimensions: 28 x 10 x 10 inches

Install Difficulty Level:

• Easy
• Estimated installation time: 2 hours

Vehicle Fitment:

• 2021-2024 Ford F-150 4WD
• Not compatible with F-150 Tremor or F-150 Raptor
• Not compatible with models equipped with Continuously Controlled Damping (CCD) system
• Not compatible with models equipped with BlueCruise
• Requires ICON Delta Joint Pro front upper control arms
• Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25 inches over stock
• Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3 inches over stock

If you have any questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
