21-24 Ford Bronco Bilstein 41-314326 B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module

21-24 Ford Bronco Bilstein 41-314326 B8 8112 (ZoneControl CR DSA+) - Rear Left Corner Module

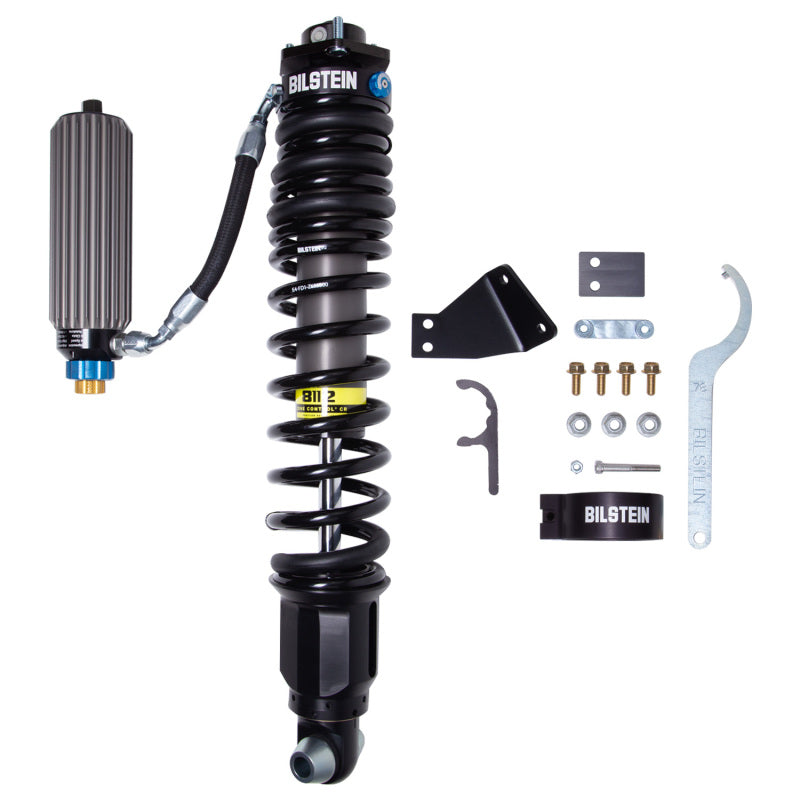

The Bilstein 41-314326 B8 8112 ZoneControl CR DSA+ Rear Left Corner Module is a premium, 3-way adjustable coilover shock built for light trucks and SUVs, specifically designed to enhance the 2021-2024 Ford Bronco's performance. Utilizing Bilstein’s groundbreaking ZoneControl CR DSA+ technology, this module delivers position-sensitive damping combined with dual speed adjustability for unmatched ride comfort and precise handling. The 60mm shock features a triple piston design offering 3 stages of compression and 2 stages of rebound valving, adjustable via click knobs for low and high-speed compression settings. The module also includes an adjustable internal hydraulic bump stop (JCO) and a remote reservoir with an anodized chassis mount for superior cooling and long-lasting performance. The threaded spring seat provides ride height adjustability from 0-3”, ensuring a customizable fit for various driving needs.

Key Features

• Direct fit, 3-way adjustable coilover shock for the 2021-2024 Ford Bronco
• ZoneControl CR DSA+ technology for position-sensitive damping and dual speed adjustability
• Triple piston design with 3 compression and 2 rebound valving stages
• Click adjuster knobs for precise adjustment of low and high-speed compression
• Adjustable internal hydraulic bump stop (JCO) for enhanced shock performance
• Ride height adjustability from 0-3” for a customizable stance
• Includes remote reservoir for increased cooling and consistent performance
• Bolt-on anodized reservoir chassis mount for secure installation

Benefits

• Superior ride comfort for both everyday driving and off-road challenges
• Enhanced control over rough terrain with adaptable damping settings
• Quick adjustments to match different driving conditions for a smooth ride
• Improved heat dissipation for reliable performance during extended use
• High-quality Bilstein construction ensures long-term durability and reliability
• Backed by Bilstein’s warranty for peace of mind

Product Specs

• Collapsed Length (in) : 18.40
• Extended Length (in) : 26.60
• Collapsed Length (mm) : 467.1
• Extended Length (mm) : 674.6
• Finish : Dampers: EVO Grey/Springs: Black
• Reservoir : Yes - Finned Aluminum
• Body Design : Smooth Body (Coilover)
• Body Diameter (id) : 60mm
• Body Material : Aluminum
• Spring Seat Included : Yes
• Adjustable Damping : Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
• Position : Rear Left

Install Difficulty Level
Installing the Bilstein 41-314326 B8 8112 Rear Left Corner Module is moderately straightforward for those with basic mechanical knowledge. The installation typically takes 2-3 hours and can be completed with standard hand tools. The direct fit and bolt-on design make it an achievable task for most DIY enthusiasts.

Vehicle Fitment

• Year range: 2021-2024
• Make: Ford
• Model: Bronco
• Engine: Fits all engine options for the 2021-2024 Ford Bronco

For more information or to report product inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
