21-24 Ford Bronco Bilstein 41-314319 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module

21-24 Ford Bronco Bilstein 41-314319 B8 8112 (ZoneControl CR DSA+) - Front Left Corner Module

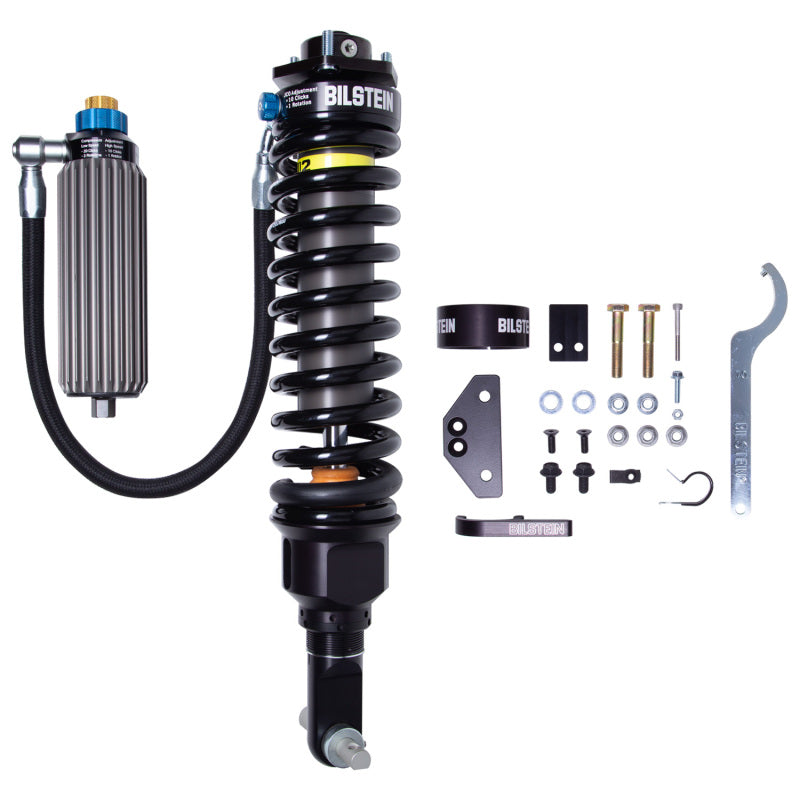

The Bilstein B8 8112 (ZoneControl CR DSA+) Front Left Corner Module is a top-tier suspension upgrade for the 2021-2024 Ford Bronco. This 3-way adjustable coilover shock is specifically designed for light trucks and SUVs, combining innovative technology and superior performance. The ZoneControl CR DSA+ system offers position-sensitive damping with Dual Speed Adjustability, ensuring a smooth ride on both daily drives and rugged off-road terrain. The module incorporates a triple piston design with 3 stages of compression valving and 2 stages of rebound valving. The adjustable coilover shock features user-friendly click adjuster knobs for precise control over low and high-speed compression and an adjustable internal hydraulic bump stop (JCO). With a threaded spring seat for ride height adjustability (0-3”) and a remote reservoir for enhanced cooling, this module provides superior comfort, stability, and adaptability.

Key Features

• Direct fit, 3-way adjustable coilover shock for the 2021-2024 Ford Bronco
• ZoneControl CR DSA+ technology for position-sensitive damping and dual speed adjustability
• Triple piston design with 3 stages of compression and 2 stages of rebound valving
• Easy-to-use click adjuster knobs for low and high-speed compression adjustments
• Adjustable internal hydraulic bump stop (JCO)
• Threaded spring seat for ride height adjustability (0-3”)
• Includes remote reservoir for improved cooling
• Anodized reservoir chassis mount for added durability

Benefits

• Offers unmatched ride comfort for daily driving and off-road adventures
• Provides maximum control and stability, even on rough terrain
• Quick and precise adjustments for tailored suspension settings
• Enhanced heat dissipation through remote reservoir for extended performance
• Easy installation with a bolt-on reservoir chassis mount
• Ideal for those seeking high performance and adaptability in a suspension upgrade

Product Specs

• Collapsed Length (in) : 17.59
• Extended Length (in) : 23.40
• Collapsed Length (mm) : 446.2
• Extended Length (mm) : 594.7
• Finish : Dampers: EVO Grey/Springs: Black
• Reservoir : Yes - Finned Aluminum
• Body Design : Smooth Body (Coilover)
• Body Diameter (id) : 60mm
• Body Material : Aluminum
• Spring Seat Included : Yes
• Adjustable Damping : Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)

Install Difficulty Level The Bilstein B8 8112 (ZoneControl CR DSA+) Front Left Corner Module is designed for an efficient installation process that can typically be completed in 1-2 hours with basic hand tools. Proper installation may require some mechanical expertise for best results.

Vehicle Fitment

• 2021-2024 Ford Bronco (various trims and configurations)
