21-23 Ford F-150 Diode Dynamics DD5178 Platinum Elite Full LED Headlights - Projector

21-23 Ford F-150 Diode Dynamics DD5178 Platinum Elite Full LED Headlights - Projector (Part No. DD5178)

The Diode Dynamics Platinum Elite Full LED Headlights for the 2021–2023 Ford F-150 deliver a dramatic upgrade in both lighting performance and front-end styling. Engineered for drivers who demand maximum visibility and modern aesthetics, these projector LED headlamps replace factory units with advanced bi-LED optics that significantly increase beam intensity, width, and down-road reach. A signature startup welcome sequence, selectable DRL colors, and sequential turn signals create a premium, high-end appearance that instantly modernizes the truck’s presence. Built in the USA with OEM-grade materials, these headlights combine aggressive styling, cutting-edge lighting technology, and long-term reliability backed by an 8-year warranty, making them a top-tier upgrade for both daily driving and enthusiast builds.

Key Features

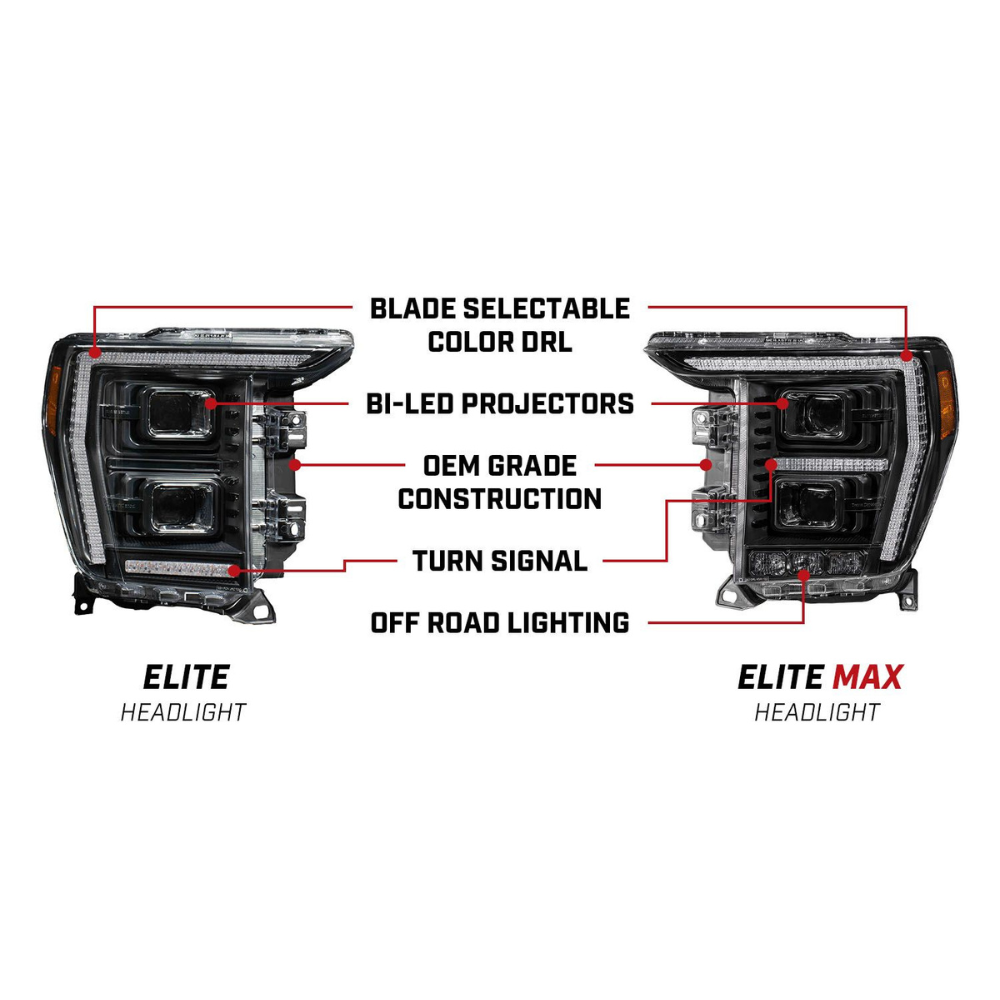

• Dual bi-LED projector system for high-output low and high beam performance
• Selectable DRL color options (amber or white) with customizable styling
• Dynamic welcome startup sequence for premium vehicle activation effect
• Sequential switchback turn signal with animated lighting flow
• Plug-and-play OEM-style connectors for factory compatibility
• Precision-engineered beam pattern with sharp cutoff and wide coverage
• Fully sealed, weather-resistant housing designed for harsh conditions
• Engineered and assembled in the USA for OEM-level quality control
• Industry-leading 8-year limited warranty coverage

Benefits

• Dramatically improves nighttime visibility with nearly double the peak intensity of factory projector systems
• Enhances road safety through wider and more controlled beam distribution
• Upgrades vehicle appearance with modern, high-end LED styling cues
• Eliminates the need for external controllers or complex wiring modifications
• Provides long-term reliability backed by an 8-year limited warranty
• Increases resale appeal with premium lighting technology integration
• Supports factory-style functionality including auto high-beam compatibility
• Reduces fatigue during night driving with improved clarity and brightness

Product Specifications

• Part Number: DD5178
• Vehicle Application: 2021–2023 Ford F-150
• Light Source: Dual Bi-LED projector system
• Color Temperature: 6000K (cool white)
• DRL Type: Selectable amber or white blade-style DRL
• Turn Signal: Sequential switchback LED
• Housing Material: OEM-grade aluminum and polycarbonate construction
• Lens Material: UV-coated polycarbonate
• Operating Voltage: 9–16V
• Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
• Water/Dust Rating: IP67 sealed construction
• Cooling System: Passive aluminum heatsink design
• Connector Type: OEM plug-and-play style harness
• Weight: Approx. 29.0–32.5 lb per set (Elite / Elite Max variant range)

Install Difficulty Level

Installation is considered easy to moderate and typically takes approximately 1–2 hours. The design supports a plug-and-play installation process using factory-style connectors, minimizing wiring complexity and eliminating the need for coding or permanent modifications. Basic hand tools are sufficient for installation, and built-in adjusters allow straightforward beam aiming for proper alignment.

Vehicle Fitment

• Make: Ford
• Model: F-150
• Years: 2021, 2022, 2023
• Trim Compatibility: Fits all trims with projector or non-projector factory headlamp configurations, including XL, XLT, Lariat, King Ranch, Platinum, Limited, and Raptor variants depending on OEM lamp style

Important Notes

This lighting system is designed for enthusiasts seeking a high-output, modern LED upgrade with advanced styling features such as animated DRLs, sequential signaling, and integrated startup effects. Off-road lighting and show modes (Elite Max variants) require independent activation and may not be intended for street use depending on local regulations.

For questions regarding fitment accuracy, installation guidance, or product details, contact the MPT Performance experts at (407) 636-7077 or by email.
