2017+ Ford F-150 3.5L & 2.7L EB / 2017+ Raptor AMS Performance AMS.55.09.0002-2 High Mount Intercooler (Silver Uncoated, No Logo)

AMS Performance 2017+ Ford F-150 & Raptor 2.7L & 3.5L EcoBoost High Mount Intercooler – Silver Uncoated w/ No Logo

Part Number: AMS.55.09.0002-2

The AMS Performance High Mount Intercooler is designed for 2017+ Ford F-150 and F-150 Raptor models equipped with 2.7L or 3.5L EcoBoost engines. The high-mount configuration relocates the intercooler from the lower front bumper area to behind the upper grille, creating valuable clearance for a winch or frame-cut off-road bumper while allowing a substantially larger intercooler core. With 113% more core volume than the OEM intercooler, a 24 x 14 x 3.5-inch bar-and-plate core, cast aluminum end tanks, 3-inch inlet and outlet ports, and heavy-duty 304 stainless steel mounting support, this intercooler is engineered for performance-oriented street, off-road, Baja, and prerunner builds. The silver uncoated finish also provide a purpose-built appearance through the grille.

Key Features

• High-mount design relocates the intercooler behind the upper grille.
• Provides clearance in the lower front bumper area for a winch or frame-cut off-road bumper.
• 24 x 14 x 3.5-inch bar-and-plate intercooler core.
• 1176 cubic inches of core volume compared with 552 cubic inches for the OEM unit.
• 113% more core volume than the OEM intercooler.
• Custom AMS-specification fin and tube geometry.

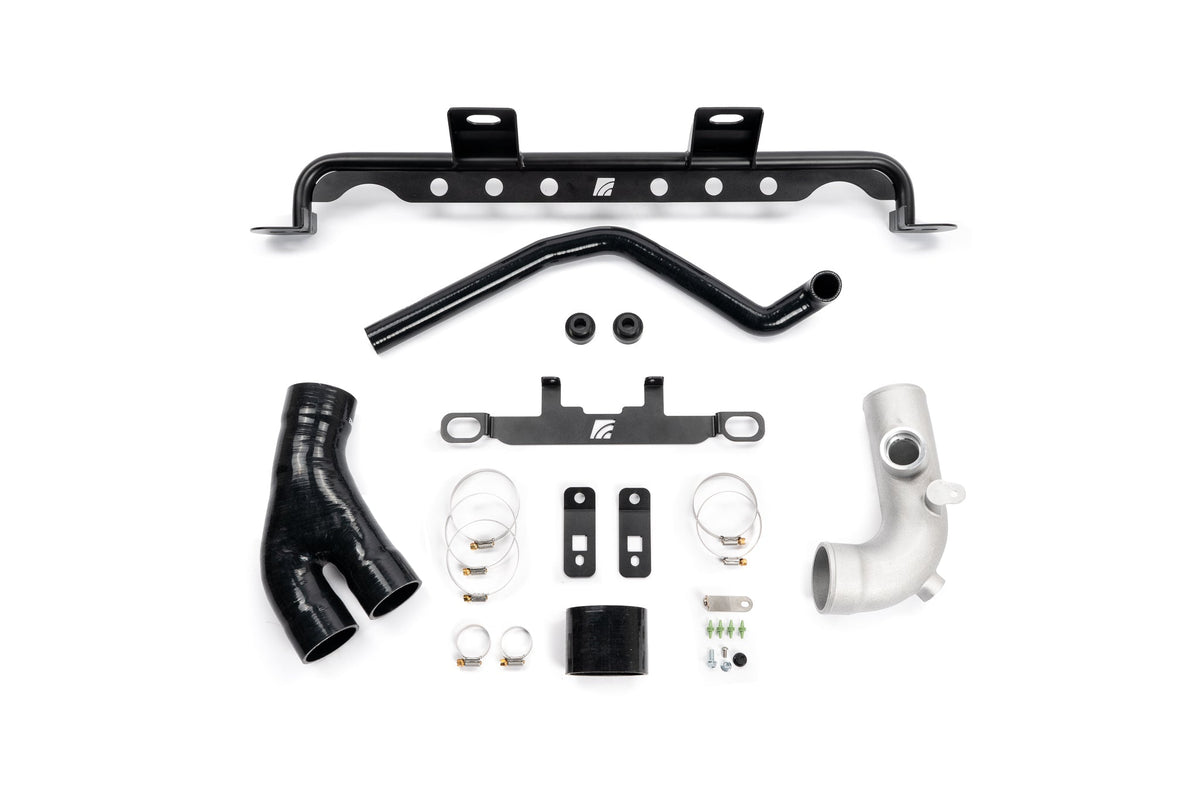

• CAD-designed cast aluminum end tanks for improved airflow and durability.
• 3-inch cast inlet and outlet ports.
• Cast outlet tube incorporates an integrated blow-off valve mount.
• Compatible with the factory blow-off valve or a Turbosmart VeePort.
• Massive gusseted 1-inch 304 stainless steel lower support bar.
• 304 stainless steel upper support bracket.
• Rubber-isolated mounting points help damp impact energy.
• Low-point drain plug provides convenient intercooler system servicing.
• Retains factory intercooler piping fitment.
• Silver uncoated finish.

Benefits

• Increases available intercooler core volume while preserving valuable lower-front-end space for off-road equipment.
• Provides a substantially larger charge-air cooling surface than the OEM intercooler.
• Supports performance-focused F-150 and Raptor builds where intercooler capacity and front-end packaging are important.
• 3-inch ports provide a substantial connection point for custom intercooler piping applications.
• Factory intercooler piping fitment allows the intercooler to connect to the existing factory piping.
• Heavy-duty stainless steel support construction is designed to withstand the demands associated with off-road use.
• The integrated drain plug makes periodic servicing of accumulated oil mist and condensation more convenient.
• The integrated blow-off valve mounting provision supports either the OEM valve or a Turbosmart VeePort.
• AMS Performance's limited product warranty covers AMS-manufactured parts against defects in workmanship for the original purchaser for 12 months or 12,000 miles, whichever occurs first, subject to the manufacturer's warranty terms and exclusions.

Product Specifications

• Product Type: High Mount Intercooler
• Part Number: AMS.55.09.0002-2
• Core Style: Bar and plate
• Core Size: 24 x 14 x 3.5 inches
• Core Volume: 1176 cubic inches
• OEM Core Volume: 552 cubic inches
• Core Volume Increase: 113% more than OEM
• Inlet Size: 3 inches
• Outlet Size: 3 inches
• End Tank Material: Cast aluminum
• Lower Support Material: 1-inch 304 stainless steel tube with gusseted stainless support material
• Upper Support Material: 304 stainless steel
• Finish: Silver, uncoated
• Logo: No logo
• Product Weight: 25 lbs
• Shipping Dimensions: 38 x 27 x 8 inches
• Piping Compatibility: Factory intercooler piping only
• Blow-Off Valve Compatibility: OEM valve or Turbosmart VeePort
• Drain Provision: Low-point drain plug

Install Difficulty Level

Easy to Moderate. AMS states that basic automotive knowledge and novice mechanical skills should be sufficient for installation, although certain circumstances may require professional installation. Installation requires removal of the upper grille components and intercooler, followed by installation of the AMS mounting hardware and intercooler. Grille shutters and surrounding material also require removal and trimming. The manufacturer does not specify an installation time for this product, so no unsupported installation-time estimate is provided.

Vehicle Fitment

• Fits 2017+ Ford F-150 2.7L Ecoboost all sub-models
• Fits 2017+ Ford F-150 3.5L Ecoboost all sub-models
• Fits 2017+ Ford Raptor 3.5L Ecoboost

CARB Status

This part does not carry a CARB (California Air Resources Board) Executive Order (EO) number. As such, it is not legal for sale or use in the state of California or any other state adopting California emission standards. Please ensure compliance with local regulations before purchasing.

For questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
