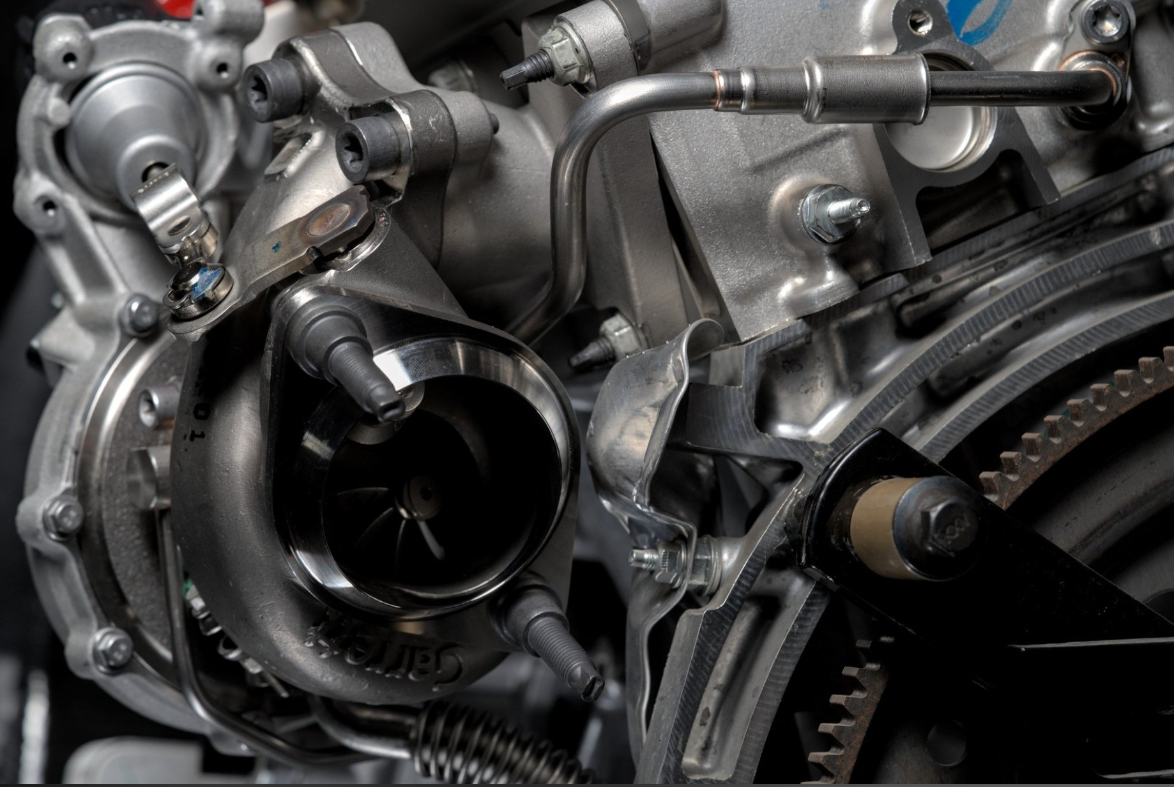

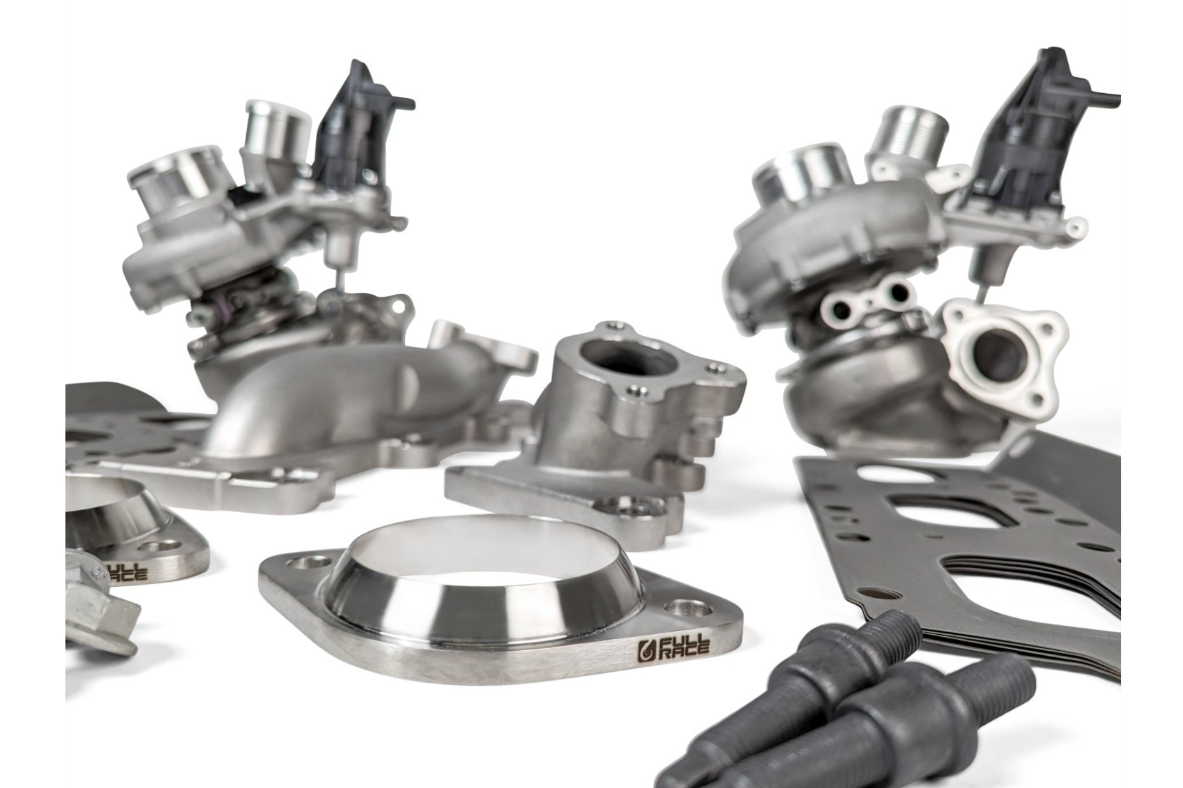

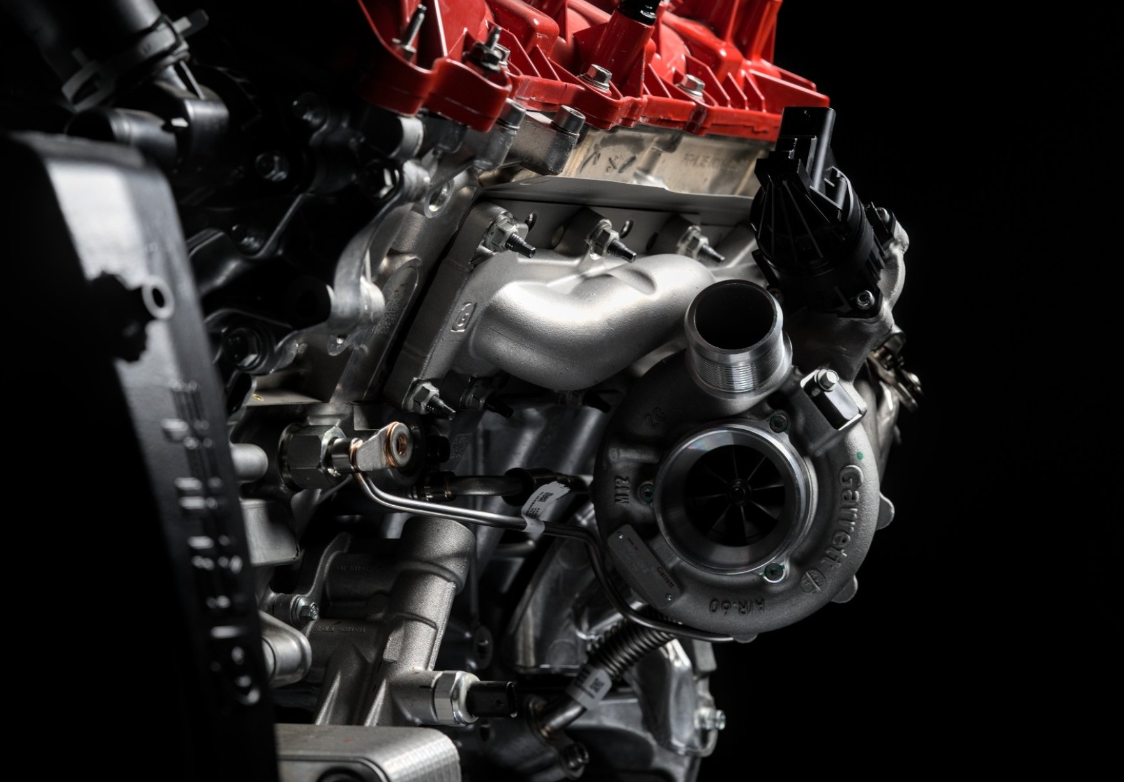

2017–2020 3.5L F-150/Raptor EcoBoost Full-Race Formline Turbo Kit

2017-2020 3.5L F150/RAPTOR ECOBOOST FULL-RACE FORMLINE TURBO KIT

Unleash the true potential of your F150/Raptor with the Full-Race Formline Turbo Kit, designed for the 2017-2020 3.5L EcoBoost engines. This kit is the epitome of performance engineering, providing a significant boost in power and efficiency for your truck.

Key Features:

• Direct-fit Stage 2 upgrade (LH & RH Turbos)
• Compressor housing inlet (2.75”) is larger than stock to allow for increased flow and optimized surge port
• Adapter for stock inlet tube included with turbo kit
• Turbo model: GT2260S
• 700+ BHP capability
• Complete assembly with calibrated electric actuator
• Billet compressor wheel with 54% increased flow
• Inconel turbine wheel with 52% increased flow
• Modern compressor and turbine wheel aero
• Tuned ported shroud for optimal compressor surge and choke performance
• Speed sensor port: use PN 781328-0003 (street kit) or 781328-0004 (pro kit)
• Journal-bearing rotating group


Benefits:

• Substantial increase in horsepower and torque
• Improved throttle response and acceleration
• Backed by a comprehensive warranty for peace of mind
• Enhances the overall driving experience

Product Specs:

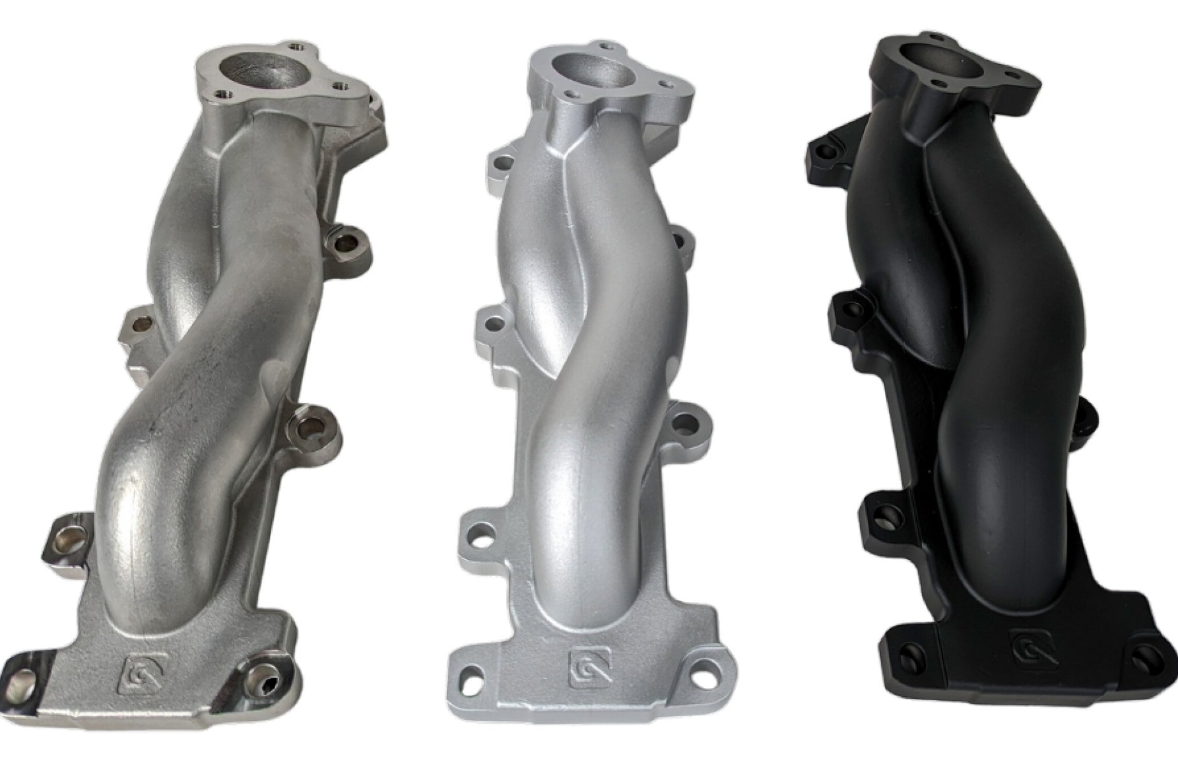

• Material: 347 Stainless Steel
• Color: Raw Stainless (Ceramic Coating available)
• Fitment: Direct bolt-on for 2017-2020 3.5L EcoBoost engines

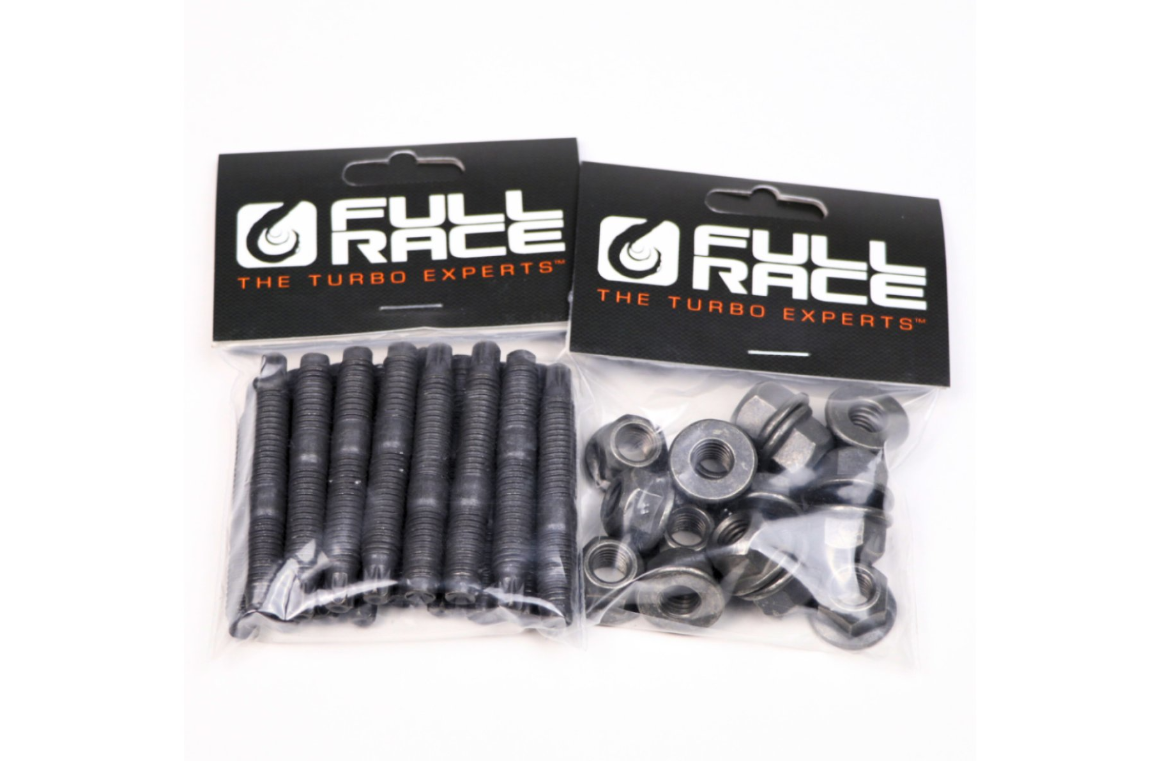

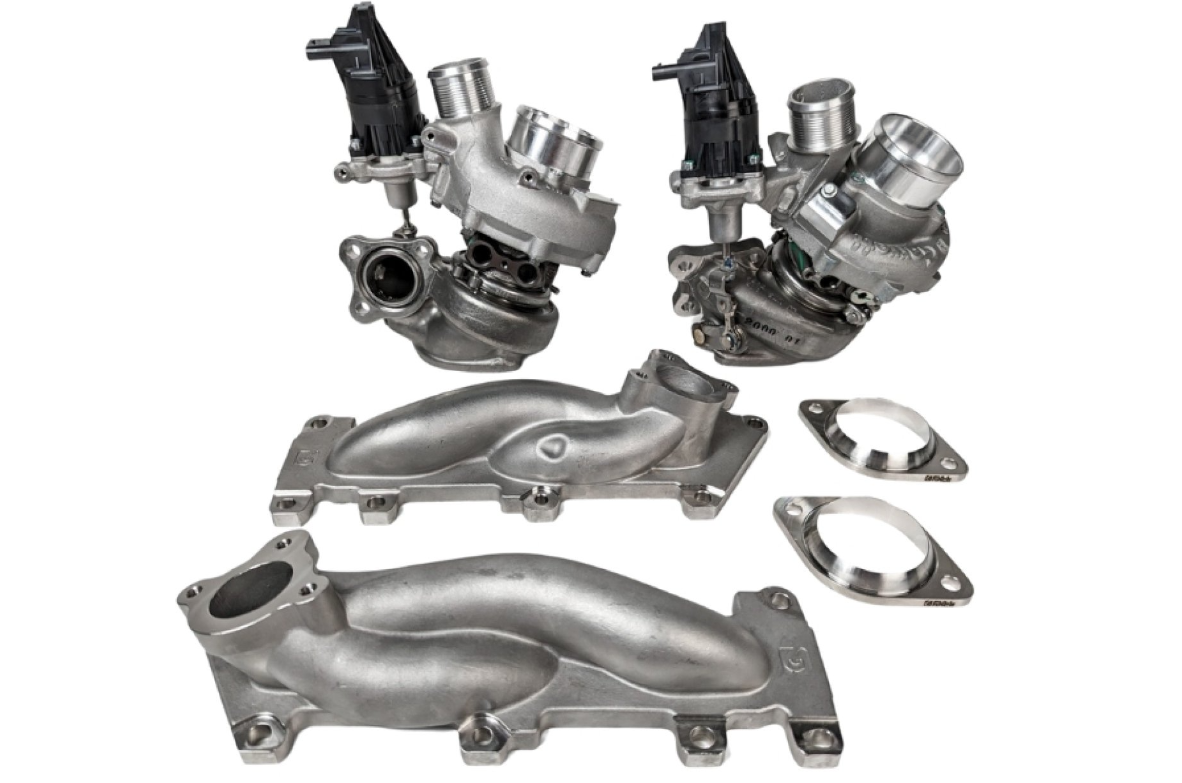

• Includes: Manifolds, hardware kit with studs, nuts, and gaskets
• Also Includes Full-Race A0190A Turbocharger Coolant Line Upgrade Kit: This kit improves the cooling system's efficiency, helping to maintain optimal turbo temperatures and enhance overall performance.

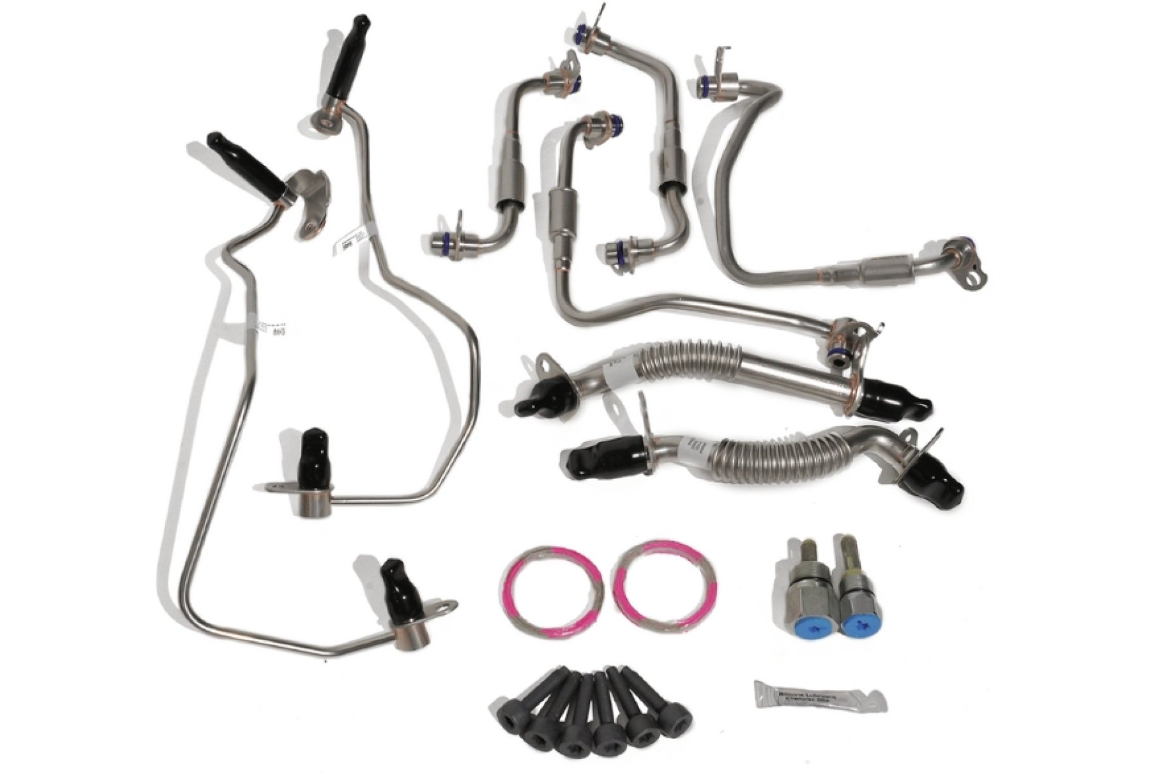

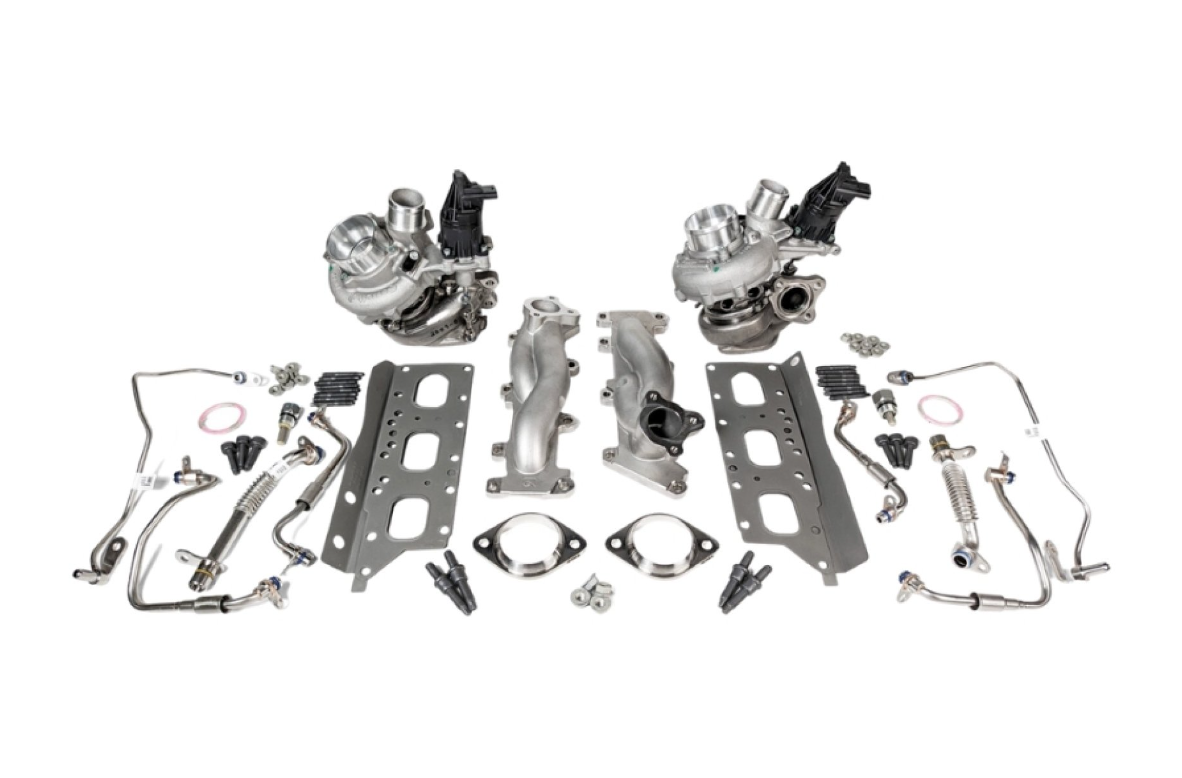

What's Included:

• (2) P0376A-A - Turbo to Manidold Gasket
• (1) HL3Z-9T516-A - Driver Side (LH) 3.5L Ecoboost Oil Line
• (1) HL3Z-9G440-A - Passenger Side (RH) Ecooboost Oil Line
• (1) FR-ECO-TURBO-HSG-ADAPTOR - Full-Race Billet Turbo Adapter Kit
• (1) BL3Z-6L625-G - Turbo Oil Filter (Driver Side)
• (1) BL3Z-6L625-F - Turbo Oil Filter (PAssenger Side)
• (6) Turbo to Manifold Bolt (Short Torx Head)
• (1) HL3Z-8A520-A - Coolant / Water Inlet / Feed Tube (Left Side)
• (1) HL3Z-8A520-B - Coolant / Water Inlet / Feed Tube (Right Side)
• (1) HL3Z-8K153-F - Coolant / Water Return Tube (Left Side)
• (1) HL3Z-8K153-D - Coolant / Water Return Tube (Right Side)
• (1) HL3Z-9T515-A - Oil Outlet Tube (Left Side)
• (1) HL3Z-9T515-B - Oil Outlet Tube (Right Side)
• (1) P0202A-A - Silicone O-Ring Lubricant - 1g

Install Difficulty Level: Professional installation is highly recommended with this modification.

Vehicle Fitment:

• 2017-2020 Ford F-150 3.5L Ecoboost
• 2017-2020 Ford F-150 3.5L Ecoboost

• 2018-2021 Ford Expedition 3.5L Ecoboost

• 2018-2021 Lincoln Navigator 3.5L Ecoboost


CARB Approval Status: This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

For any inquiries or to report inaccuracies in this description, please contact MPT Performance experts at (407) 636-7077 or via email.
