2014 Ford F-150 4WD ICON K93061 0-2.63" Lift, Stage 1 Suspension System

2014 Ford F-150 4WD ICON K93061 0-2.63" Lift, Stage 1 Suspension System

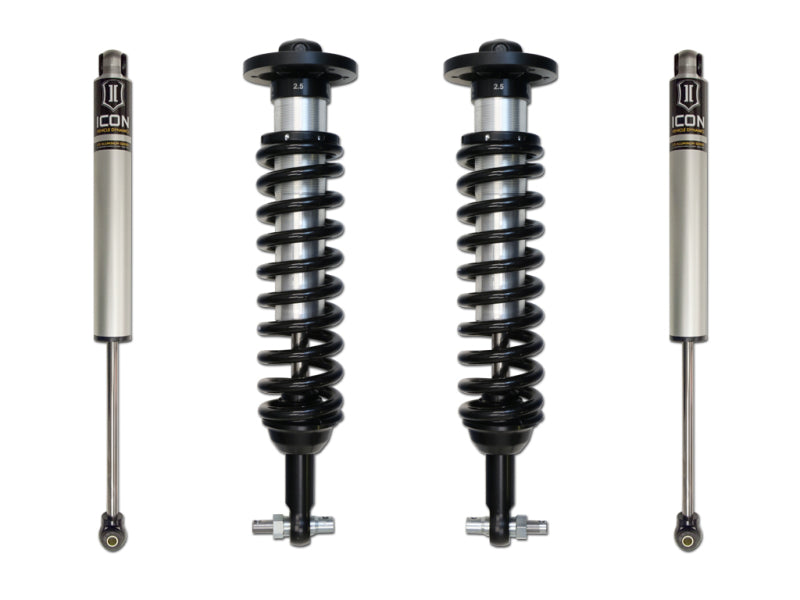

ICON Vehicle Dynamics’ 2014 Ford F-150 4WD suspension system is engineered for maximum performance, offering the serious driver enhanced vehicle control and superior ride quality both on-road and off. The Stage 1 system focuses on increasing wheel travel and damping ability, providing a more comfortable, responsive driving experience. Featuring ICON's vehicle-specific tuned 2.5" coilover shocks with internal reservoirs, the suspension offers exceptional cooling properties for extended performance. ICON’s proprietary Eibach coil springs improve vehicle "feel" through the range of travel, delivering an unmatched driving experience. These coilovers are height adjustable from 0-2.63”, giving you the ability to run larger, more aggressive wheel and tire combinations for added style and function. The 2.0 Aluminum Series monotube rear shocks provide balanced performance, enhancing both ride quality and handling. Ideal for drivers looking to take their F-150’s capabilities to the next level both on the road and in the dirt, the ICON Stage 1 suspension system is the perfect upgrade.

Key Features

• Designed for maximum performance, enhancing both on-road and off-road capabilities
• Vehicle-specific tuned 2.5” coilover shocks with internal reservoirs for exceptional cooling
• Adjustable coilovers with 0-2.63" of lift to accommodate larger wheels and tires
• 2.0 Aluminum Series monotube rear shocks with vehicle-specific valving
• Increased wheel travel and ride quality over stock, with no change to towing capacity
• 100% bolt-on system, no drilling, cutting, or welding required for installation
• Durable, high-quality components for superior performance and longevity

Benefits

• Enhanced Performance: Boosts wheel travel and damping for improved control and ride quality, both on and off the road.
• Adjustable Lift: Achieve 0-2.63" of lift, allowing for larger and more aggressive wheel and tire combinations.
• Superior Ride Quality: Features ICON-engineered Eibach coil springs and 2.5" coilover shocks for a smooth ride over rough terrains.
• Durability & Longevity: Built with 6061 aircraft-grade aluminum CNC-machined components, offering superior strength and resistance to corrosion.
• No Modifications Required: 100% bolt-on installation—no need for drilling, cutting, or welding.
• Warranty: ICON backs this system with a limited lifetime warranty for added peace of mind.

Product Specifications

• Lift Height: 0-2.63"
• Material: 6061 aircraft-grade aluminum, high-strength alloy CNC-machined components
• Shock Type: 2.5” coilover shocks with internal reservoirs and 2.0 aluminum body IFP rear shocks
• Coilovers: Height adjustable from 0-2.63”
• Shock Body: Corrosion-resistant CAD plated with 7/8" shaft
• Rear Shock: 2.0 aluminum body monotube with 5/8" polished shaft
• Components: FK Rod End bearings, high-strength alloy lower bar pin, and vehicle-specific valving for front and rear shocks
• Installation: 100% bolt-on system, no modification required

Install Difficulty Level
The installation of the ICON K93061 suspension system is straightforward and can typically be completed in 4-6 hours, making it an accessible upgrade for those with basic mechanical experience. As a 100% bolt-on system, there’s no need for cutting, drilling, or welding—just bolt it in and go. The process is manageable with standard hand tools, ensuring a hassle-free installation for enhancing your vehicle's performance.

Vehicle Fitment

• Year Range: 2014
• Make: Ford
• Model: F-150 4WD
• Engine: Compatible with all engine options available for the 2014 F-150 4WD

Note:

For any questions regarding this product or to report any inaccuracies in the product description, please contact the MPT Performance experts at (407) 636-7077 or by email.
