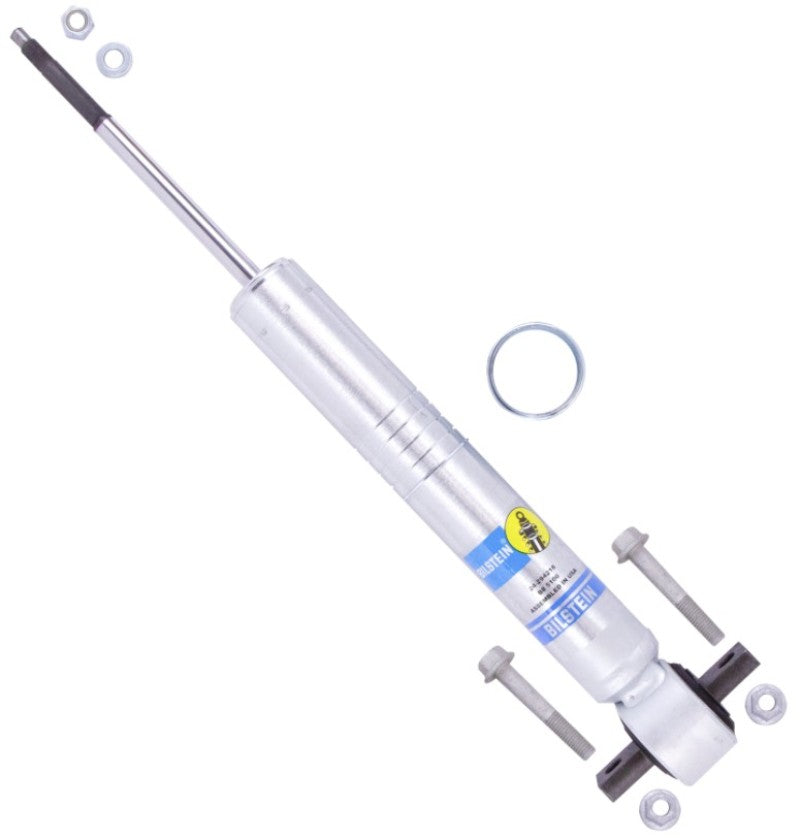

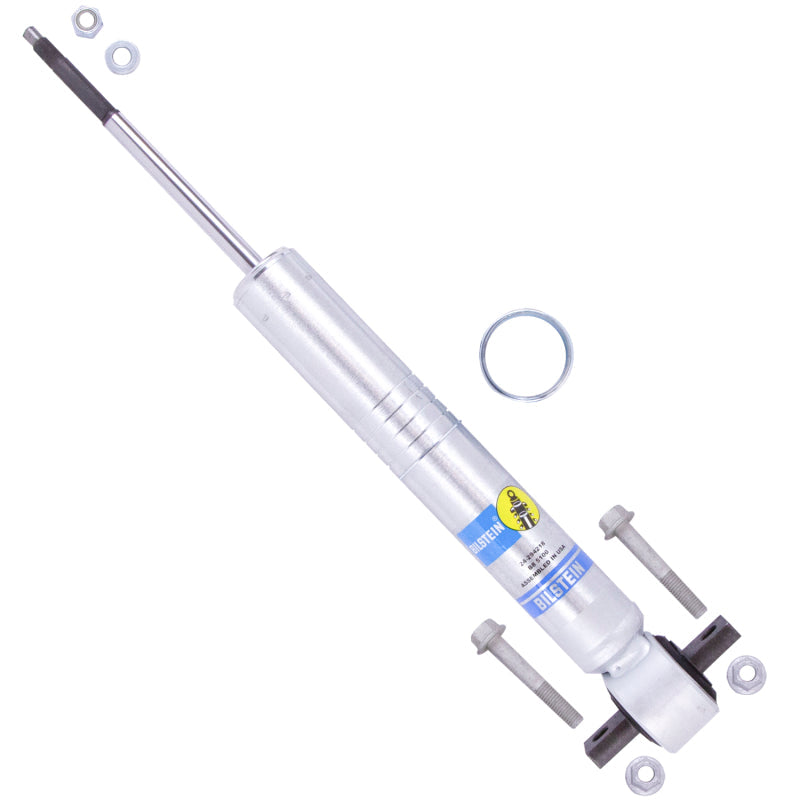

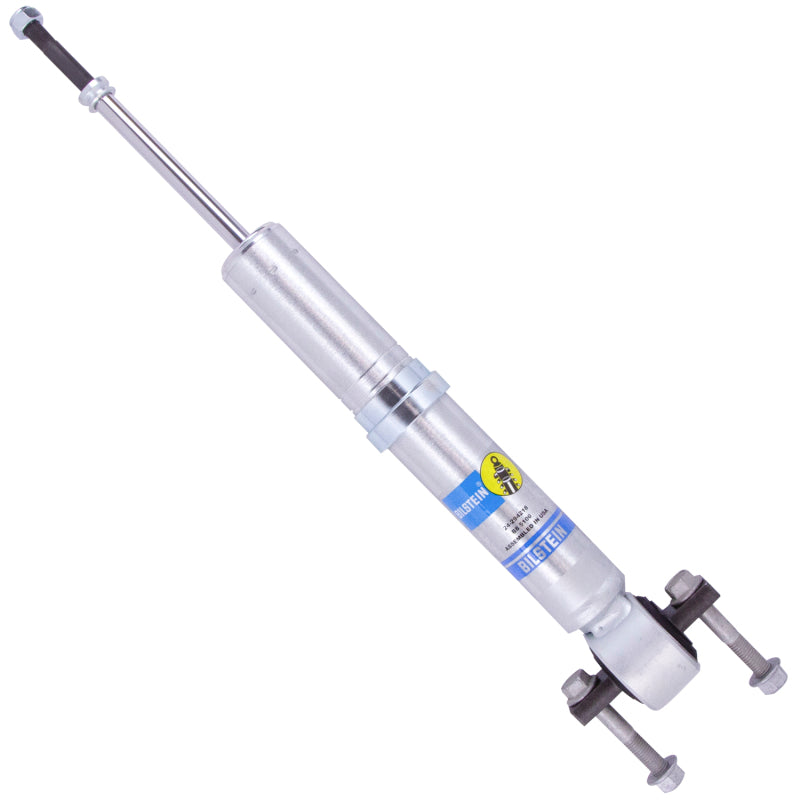

19-23 Ford Ranger Bilstein 24-294218 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Front

19-23 Ford Ranger Bilstein 24-294218 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber - Front

The Bilstein 24-294218 B8 5100 (Ride Height Adjustable) front suspension shock absorber is engineered to deliver enhanced performance and ride quality for your 2019-2023 Ford Ranger. Designed specifically for vehicles with OE coilover-style suspension, this shock absorber allows for up to 3 inches of front lift, offering flexibility to fine-tune ride height and improve vehicle stance. Featuring a monotube design with a 46mm digressive piston, the B8 5100 shock absorber increases wheel travel, enhances handling, and provides a more controlled, comfortable ride both on and off-road.

Key Features:

• Ride Height Adjustable with snap-ring grooves to adjust spring seat position, offering up to 3 inches of lift
• Monotube design with a 46mm digressive piston for improved wheel travel and handling
• Non-adjustable damping for reliable, consistent performance
• Zinc-plated finish for enhanced corrosion resistance and durability
• Coilover-style body with snap-ring grooves for easy height adjustment
• Direct-fit installation with reuse of OEM spring seats (spring seat not included)

Benefits:

• Customizable ride height for leveling your vehicle and enhancing its appearance and performance
• Improved wheel travel and handling, allowing for better off-road capability and a smoother ride
• Durable construction with a zinc-plated finish ensures longevity in tough conditions
• Simple installation with no modification needed and backed by Bilstein’s Limited Lifetime Warranty for added peace of mind

Product Specs:

• Collapsed Length: 14.59 inches (370.5 mm)
• Extended Length: 19.26 inches (489.2 mm)
• Finish: Zinc-plated for corrosion resistance
• Body Design: Snap-ring grooved body (coilover style)
• Body Diameter: 46 mm
• Adjustable Ride Height: Yes, 0-3 inches of front lift with OE springs
• Damping: Non-adjustable
• Reservoir: No
• Spring Seat Included: No (reuse OEM spring seat)
• Replacement Mounting Kit: B4-KT1-Z430A00

Install Difficulty Level

Installing the Bilstein B8 5100 (Ride Height Adjustable) front suspension shock absorber is an easy-to-moderate task, typically taking around 2 hours to complete. The installation requires basic hand tools and the reuse of the OEM spring seat, making it a straightforward upgrade for both beginners and experienced enthusiasts.

Vehicle Fitment

• Vehicle Year Range: 2019-2023
• Make: Ford
• Model: Ranger
• Engine: Compatible with all engine variants of the 2019-2023 Ford Ranger
