17-20 Ford Raptor ICON K93153 1-3" Lift, 3.0, Stage 3 Suspension System

17-20 Ford Raptor ICON K93153 1-3" Lift, 3.0, Stage 3 Suspension System

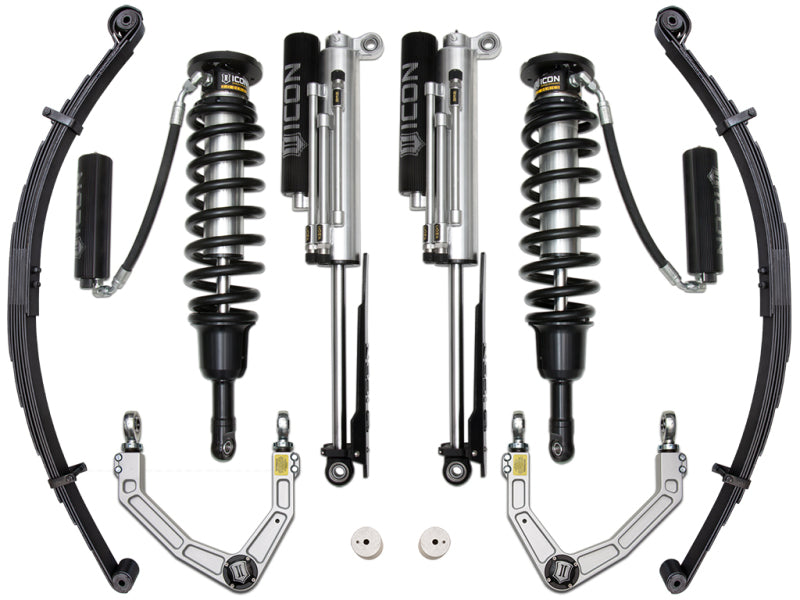

The ICON K93153 Stage 3 Suspension System is the ultimate performance upgrade for your 2017-2020 Ford Raptor. Featuring 3.0 Series coilovers, 3-Tube bypass shocks, and a multi-rate leaf spring kit, this system provides exceptional ride quality, durability, and off-road capability. Offering adjustable lift heights between 1-3” and superior wheel travel, the ICON system delivers a balanced and stable ride, whether on challenging off-road terrain or smooth highways. Enhanced features such as the adjustable Compression Damping Control (CDC) Valve, multi-stage "Bump Zone," and robust billet aluminum upper control arms ensure maximum control, comfort, and long-lasting performance.

Key Features

• 1-3” Adjustable Front Lift: Provides superior ground clearance and better off-road performance.

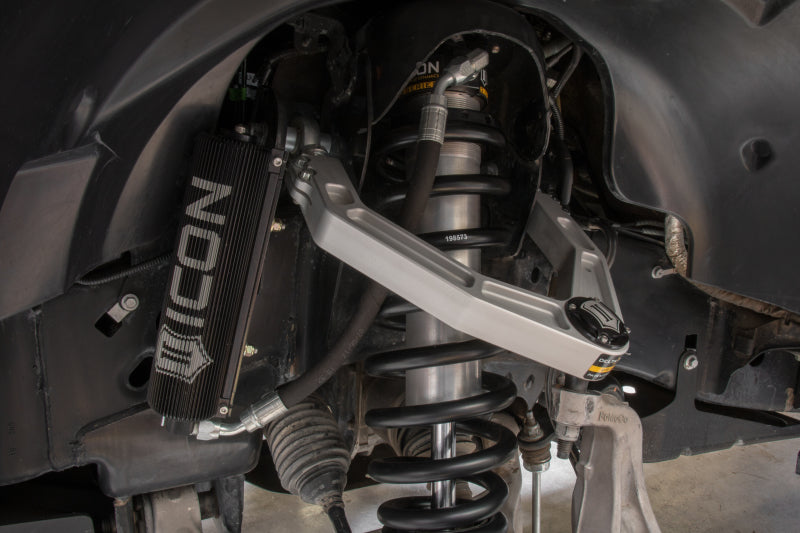

• 3.0 Series Coilovers with 10” Finned Aluminum Reservoirs for increased cooling and damping consistency.
• Vehicle-Specific Valving ensures superior ride quality and control over various terrains.
• Easy-to-adjust CDC Valve with 10 settings to fine-tune damping based on driving style and load.
• Multi-stage Hydraulic “Bump Zone” for improved bottom-out resistance during extreme off-road use.
• High-Quality, ICON-Engineered Coil Springs are guaranteed for life against sagging or breakage.
• Billet Aluminum Upper Control Arm Kit featuring patented Delta Joint technology for maximum durability and quiet, noise-free operation.

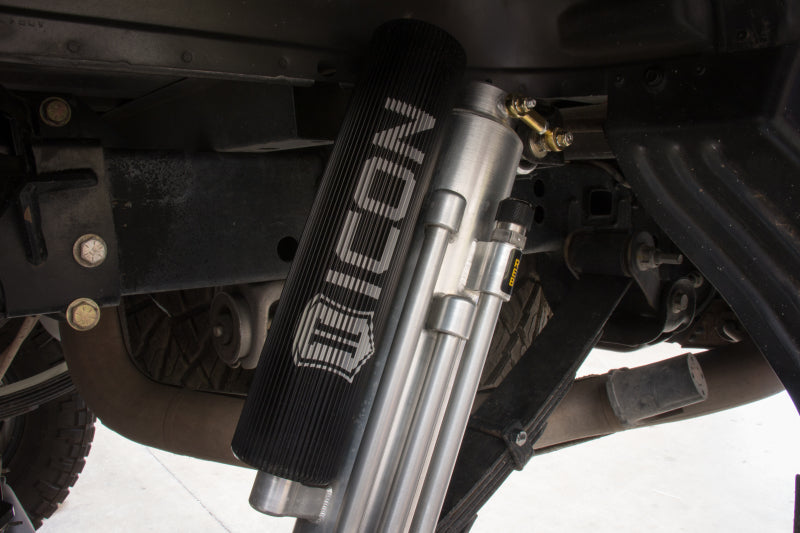

• 3-Tube Bypass Shocks with 12” Finned Aluminum Reservoirs provide superior damping and rebound control.
• Multi-Rate Leaf Springs with 3 adjustable spring rates for customized ride comfort and performance.

Benefits

• Enhanced Off-Road Performance: The system delivers improved travel, damping, and durability, allowing your Ford Raptor to excel in the toughest off-road environments.
• Superior Ride Quality: Vehicle-specific valving and adjustable compression damping offer a smoother, more controlled ride, reducing body roll and increasing stability on all surfaces.
• Durability and Strength: Built with high-quality components such as CNC-machined 1” shock shafts, FK Rod End bearings, and billet aluminum control arms, the system ensures long-lasting performance.
• Easy Installation: The bolt-in design eliminates the need for modifications, making installation straightforward and hassle-free.
• Fully Rebuildable: The system’s serviceable design allows for revalves and rebuilds, ensuring the suspension lasts for years.

Product Specs

• Size: 3.0 Series Coilovers, 3-Tube Bypass Shocks, Multi-Rate Leaf Springs
• Lift Range: Adjustable 1-3” front lift
• Material: CNC-machined 6061 aluminum, billet aluminum upper control arms, hard anodized shock bodies
• Shock Type: Coilovers with remote reservoirs and 3-Tube Bypass Shocks
• Reservoir Size: 10” finned aluminum (coilovers), 12” finned aluminum (bypass)
• Compression Damping Control: Easy-to-adjust CDC Valve with 10 settings
• Spring Type: Multi-rate leaf springs with 3 adjustable rates
• Compatibility: 2017-2020 Ford Raptor
• Design: Fully serviceable and rebuildable for long-term maintenance

Install Difficulty Level

The ICON K93153 Stage 3 Suspension System features a bolt-on design for easy installation. With no cutting or welding required, installation can be completed in approximately 5-6 hours, making it a suitable upgrade for enthusiasts with basic mechanical experience.

Vehicle Fitment

• Make: Ford
• Model: Raptor
• Year Range: 2017-2020
• Engine: Compatible with all engine types
