17-20 Ford Raptor ICON K93152 1-3" Lift, 3.0, Stage 2 Suspension System

17-20 Ford Raptor ICON K93152 1-3" Lift, 3.0, Stage 2 Suspension System

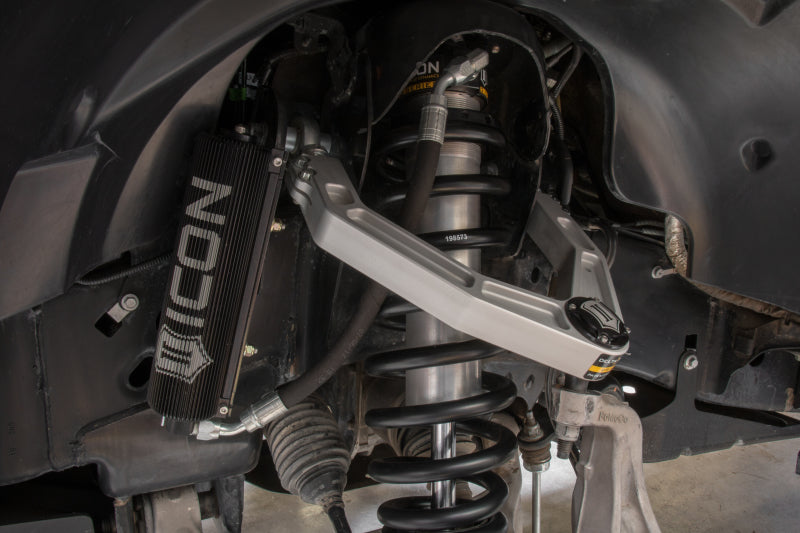

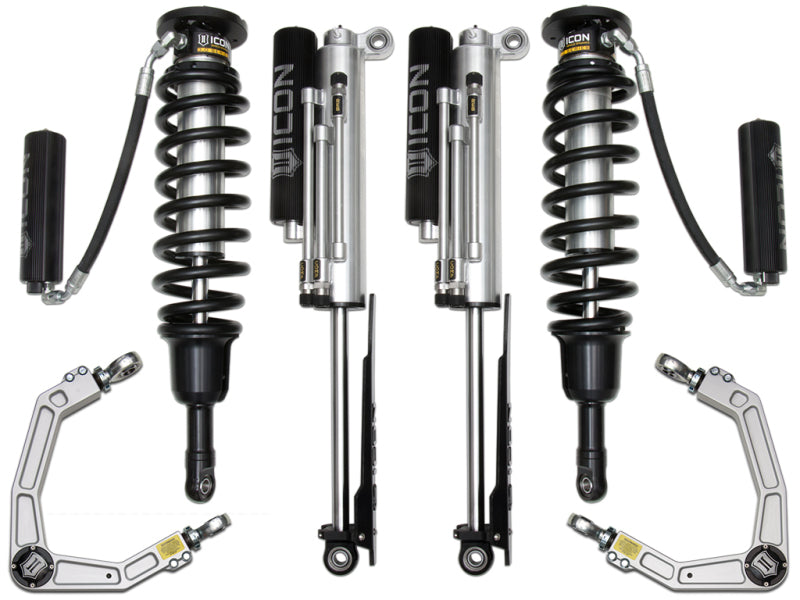

The ICON K93152 Stage 2 Suspension System is the ultimate upgrade for your 2017-2020 Ford Raptor, designed to deliver superior off-road capability, enhanced ride quality, and rugged durability. Featuring 3.0 Series Coilover and 3-Tube Bypass Shocks, this system provides adjustable lift heights of 1-3” to tackle any terrain, from highways to the harshest trails. With vehicle-specific valving, adjustable compression damping control, and increased wheel travel, the ICON system ensures a smooth ride while maintaining optimal performance in demanding conditions. Whether you're pushing your Raptor to its limits off-road or cruising on the highway, this suspension system excels in both environments.

Key Features

• Adjustable 1-3” front lift for increased ground clearance and better off-road performance
• Vehicle-specific valving provides unmatched ride quality across on- and off-road conditions
• Easy-to-adjust CDC Valve with 10 compression damping settings for versatile driving styles and terrain
• ICON’s multi-stage hydraulic “Bump Zone” for improved bottom-out resistance during extreme compressions
• 10" finned aluminum reservoirs offer generous oil volume and superior cooling for consistent performance
• Heavy-duty CNC machined 1” shock shafts and FK Rod End COM12 spherical bearings for maximum strength and durability
• Fully serviceable design allows for revalving, rebuilds, and extended service life
• Bolt-on design for easy installation with no modification required

Benefits

• Improved Performance: With increased wheel travel and vehicle-specific valving, the system enhances control and ride quality for both on-road and off-road conditions.
• Enhanced Control: The CDC Valve with 10 settings offers precise tuning, allowing the suspension to adapt to different driving conditions and load setups.
• Rugged Durability: The heavy-duty components, including 1” shock shafts and FK Rod End bearings, provide maximum strength, while the design protects against premature wear.
• Heat Dissipation: The 10" finned aluminum reservoirs increase oil volume and cooling surface area, reducing the risk of shock fade during extended use.
• Easy Installation: The kit’s bolt-in design ensures a straightforward installation process into the OEM shock location, with no cutting or modifications required.
• Long-Lasting Components: ICON-engineered coil springs are guaranteed for life against sagging or breakage, ensuring reliable performance for years.

Product Specs

• Size: 3.0 Series Coilover and 3-Tube Bypass Shocks
• Lift Range: Adjustable 1-3” front lift
• Material: 6061 CNC machined aluminum, CAD-plated shock bodies, 1” shock shafts

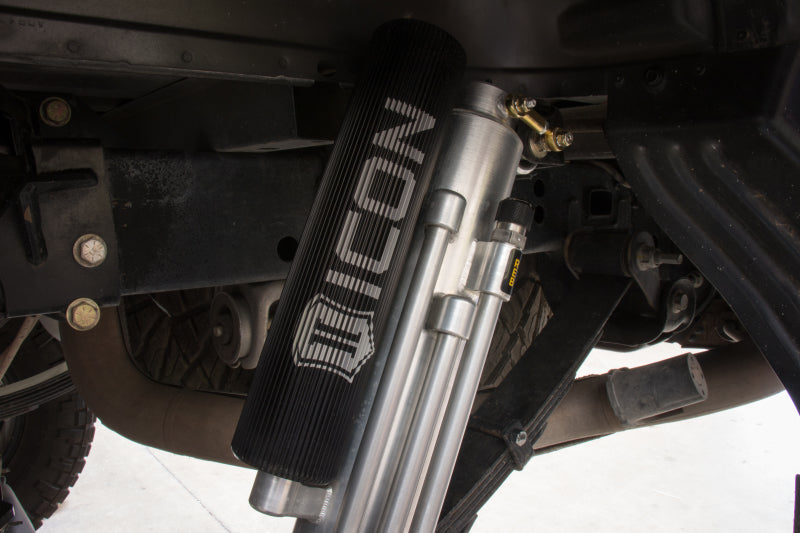

• Shock Type: Coilover and 3-Tube Bypass with remote reservoirs
• Reservoir Size: 10" (coilover) and 12" (bypass)
• Shock Features: Adjustable compression damping, multi-stage hydraulic “Bump Zone,” and easy-to-adjust detented knobs
• Spring Type: ICON-engineered coil springs
• Compatibility: 2017-2020 Ford Raptor
• Design: Fully serviceable and rebuildable for long-term maintenance

Install Difficulty Level

The ICON K93152 Stage 2 Suspension System is designed with an easy, bolt-on installation process. With no need for cutting or welding, installation can be completed in approximately 3-4 hours, making it ideal for DIY enthusiasts or professional installers looking for a straightforward upgrade.

Vehicle Fitment

• Make: Ford
• Model: Raptor
• Year Range: 2017-2020
• Engine: Compatible with all engine types

Note:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.

For any questions or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
