15-20 Ford F-150 Diode Dynamics DD7169 C1 Sport Stage Series Reverse Light Kit

Diode Dynamics DD7169 C1 Sport Stage Series Reverse Light Kit

Enhance the rear visibility and aesthetics of a 2015–2020 Ford F-150 with the Diode Dynamics DD7169 C1 Sport Stage Series Reverse Light Kit. This advanced lighting solution integrates seamlessly with the vehicle's existing systems, offering both functional and stylistic upgrades. The kit includes high-output SSC1 LED pods equipped with Total Internal Reflection (TIR) optics, ensuring focused illumination for improved nighttime driving safety. Additionally, the integrated red accent backlight provides a modern and cohesive look, complementing the truck's tail lights. Designed and assembled in the USA, this kit is engineered for durability and performance.

Key Features

• Direct fitment for 2015–2020 Ford F-150 models

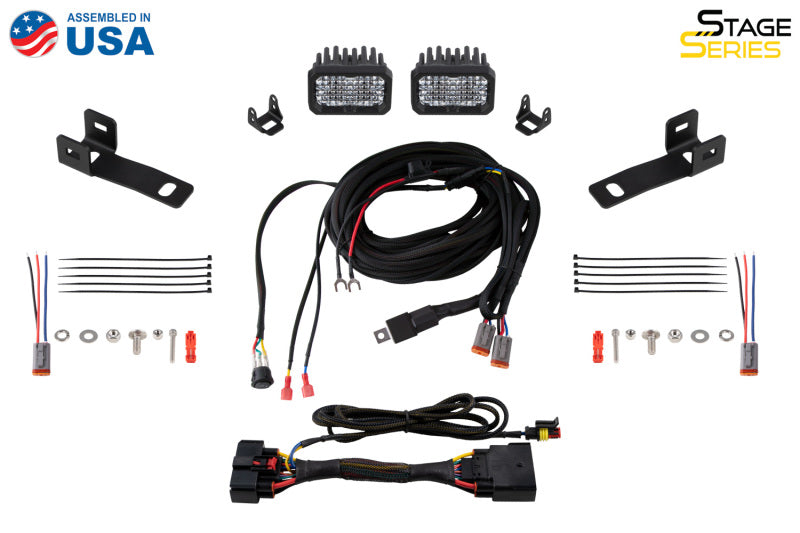

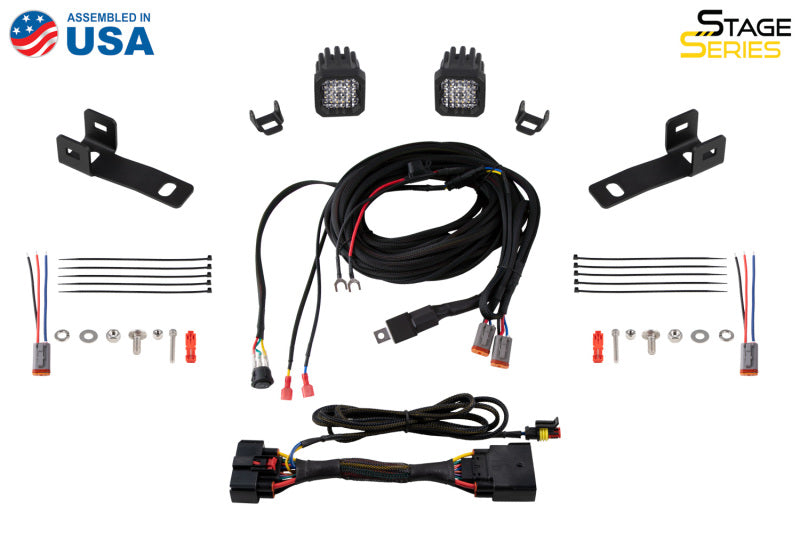

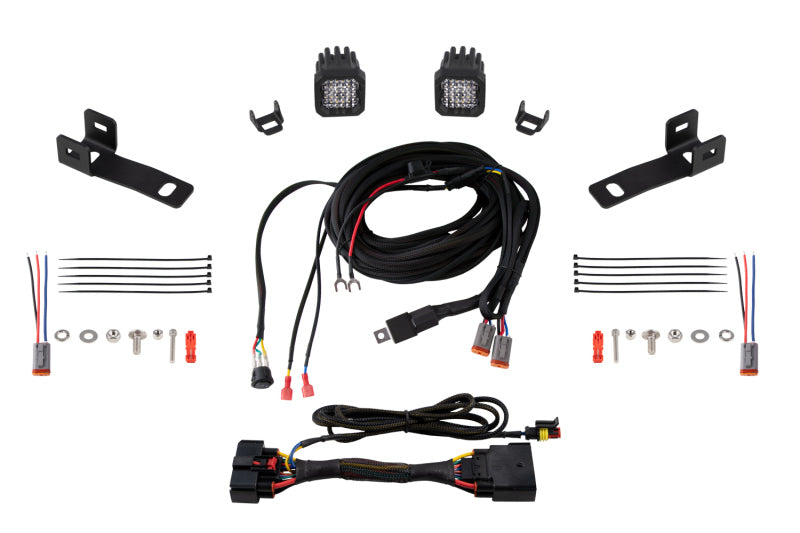

• Mounts two SSC1 or SSC2 LED pods underneath the rear bumper

• Plug-and-play wiring harness with OEM connectors and toggle switch override

• Provides high-power reverse light and red accent backlight

• Designed and assembled in the USA

Benefits

• Enhanced rear visibility improves safety during nighttime or low-visibility driving conditions

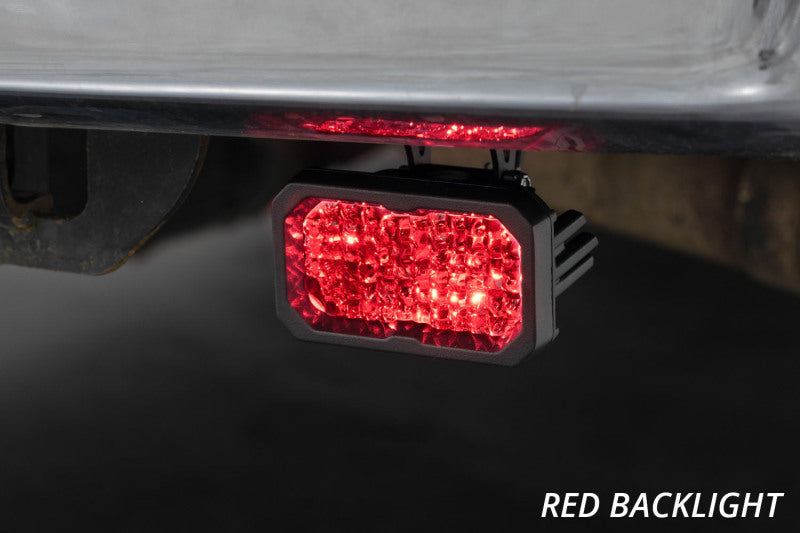

• Red accent backlight adds a modern and cohesive appearance to the vehicle

• Plug-and-play installation simplifies setup without the need for cutting or drilling

• Toggle switch allows manual activation of reverse lights, offering flexibility in various driving situations

• Backed by an 8-year limited warranty, ensuring long-term reliability and peace of mind

Product Specifications

• Beam Angle: 80° x 50°

• LED Emitter: Cree XP-L HI

• Connectors: Deutsch DT Input

• Physical Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

• Unit Weight: 3.4 lbs

• Product Weight: 4.2 lbs

• Shipping Dimensions: L14" x W10" x H7"

• Shipping Weight: 5.2 lbs

• Light Color: White (reverse light), Red (accent backlight)

• Color Temperature: 6000K

• Waterproof Rating: IP67

• Voltage: 9–16V

• Amperage: 1A

• Raw Lumens: 1449

• Measured Lumens: 1030

Install Difficulty Level

The installation of the Diode Dynamics DD7169 C1 Sport Stage Series Reverse Light Kit is straightforward and user-friendly. Utilizing custom-molded OEM connectors, the kit offers a plug-and-play experience. The adapter harness connects directly to the vehicle's existing wiring near the spare tire, eliminating the need for cutting, drilling, or additional wiring. With the included toggle switch, users can easily control the reverse lights, either activating them automatically when the vehicle is in reverse or manually at any time. This design ensures a hassle-free installation process, making it accessible even for those with minimal automotive experience.

Vehicle Fitment

• Make: Ford

• Model: F-150

• Years: 2015, 2016, 2017, 2018, 2019, 2020

For inquiries or to report any discrepancies in the product description, please contact the MPT Performance experts at (407) 636-7077 or via email.
