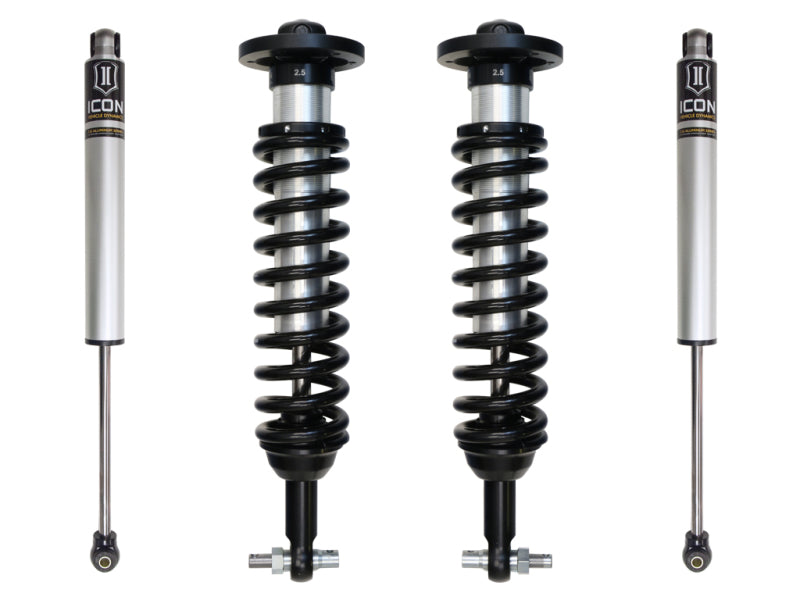

15-20 Ford F-150 2WD ICON K93091 0-3in Stage 1 Suspension System

ICON K93091 0-3in Stage 1 Suspension System

If you are looking for a high-performance suspension system that can handle any terrain and improve your ride quality, look no further than the ICON K93091 0-3in Stage 1 Suspension System. This system is designed for 2015 and newer Ford F-150 2WD models and features adjustable coilovers, rear shocks, and tubular upper control arms. The ICON K93091 0-3in Stage 1 Suspension System will give you the ability to adjust the height of your front suspension from 0 to 3 inches, allowing you to fit larger tires and customize your stance. The coilovers and shocks are also tuned specifically for your vehicle, providing superior damping and control on and off the road. The tubular upper control arms are made from high-strength alloy and feature rod end bearings for durability and minimal deflection. The ICON K93091 0-3in Stage 1 Suspension System is a 100% bolt-on system that does not require any drilling, cutting, or welding for installation. It is also backed by a one-year warranty from ICON.

Key Features

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed for the lighter weight of the 2015-UP F150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-3" of lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 aluminum body IFP rear shock with 5/8" polished nitro steel shaft
• 100% bolt-on system - no drilling, cutting, or welding necessary for install
• Can use OEM wheels and tires
• Aftermarket wheels: 8-9" wide wheel with 4.75" backspace
• Aftermarket tires: 33 x 11.50 tall tires (larger tires may fit but fender trimming and modifications will be required)
• Note: shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle

Benefits

• Enhance the capabilities of your pickup on the road as well as in the dirt
• Achieve a more aggressive and customized look for your vehicle
• Enjoy a smoother and more comfortable ride in any terrain
• Experience better handling and stability in all driving conditions
• Gain more clearance and traction for larger tires
• Install easily and confidently with no modifications required
• Rely on the quality and durability of ICON products
• Take advantage of the one-year warranty from ICON

Product Specs

• Part Number: K93091
• Brand: ICON
• Position: Front and Rear
• Suspension Type: Lift Kit
• Shocks Series: Icon V.S. 2.5 Series
• Tire Size: 33"
• Lift Height Range: 0-3.5 Inches
• Shocks Included: Yes
• Front Shocks: Icon 2.5 VS Series
• Rear Shocks: Icon V.S. 2.5 Series
• Rear Lift Component: None
• Fitment: Direct Fit
• Color: Painted
• Material: Aluminum, Steel
• Weight: 88 pounds
• Made in the USA

Install Difficulty Level

The ICON K93091 0-3in Stage 1 Suspension System is easy to install and does not require any special tools or skills. The installation time is estimated to be around 3 hours, depending on your experience and equipment. The system comes with detailed instructions and all the necessary hardware for a hassle-free installation. If you have any questions about this product or need assistance with the installation, you can contact the MPT Performance experts at (407) 636-7077 or by email.

Vehicle Fitment

The ICON K93091 0-3in Stage 1 Suspension System is designed to fit the following vehicles:

• 2015-2020 Ford F-150 2WD
• Any engine size

If you have any questions about this product or to report product description inaccuracies, contact the MPT Performance experts at (407) 636-7077 or by email.
