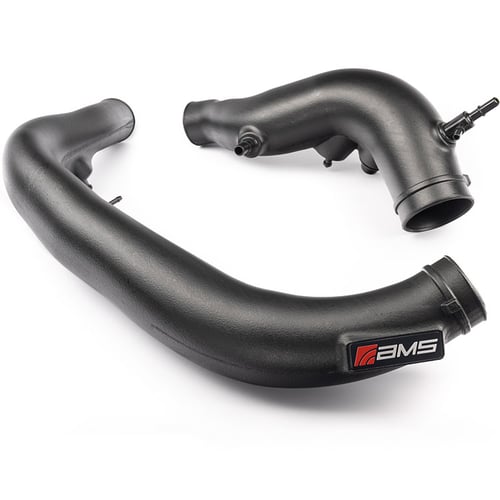

15-16 Ford F-150 3.5L Ecoboost AMS AMS.46.08.0001-1 Performance Turbo Inlet Tubes

15-16 Ford F-150 3.5L EcoBoost AMS Performance AMS.46.08.0001-1 Performance Turbo Inlet Tubes

The AMS Performance Turbo Inlet Tubes are designed to remove a major airflow restriction found between the intake system and turbochargers on the 2015-2016 Ford F-150 3.5L EcoBoost. AMS increases the inlet tube diameter from the restrictive 40mm factory design to 62mm, providing a 140% increase in cross-sectional area at the factory bottleneck. The smoother, larger airflow path helps the twin turbochargers breathe more freely while reducing pressure drop before the compressor covers. AMS testing showed approximately 30% less pre-turbo vacuum compared to the factory inlet tubes. The result is a strong supporting modification for stock or upgraded EcoBoost combinations, especially when paired with proper ECU tuning. Factory fittings and connections are retained for OEM-style functionality, while compatibility with the factory airbox and most aftermarket intake systems makes these inlet tubes an easy addition to many F-150 performance builds.

Key Features

• Increases inlet tube size from 40mm to 62mm

• 140% increase in cross-sectional area compared to the restrictive factory tubes

• Approximately 30% reduction in pre-turbo vacuum during AMS testing

• Reduces airflow restriction before the turbocharger compressor covers

• Smoothly shaped tubing helps maintain airflow through directional changes

• Compatible with the factory intake and most aftermarket intake systems

• Retains factory fittings and connections

• OEM-style fit and appearance

• Designed for straightforward coupler positioning and tube alignment

• Includes silicone couplers, clamps, fittings, and required installation hardware

Benefits

• Allows the factory turbochargers to breathe more freely

• Helps reduce the restriction created by the original turbo inlet tubes

• Supports increased horsepower potential when combined with appropriate ECU tuning

• Provides additional airflow capacity for modified 3.5L EcoBoost combinations

• Maintains factory connections and vehicle systems

• Works well as part of a complete intake and tuning package

• Covered by the AMS Performance limited product warranty for the original purchaser, providing coverage against defects in workmanship for 12 months or 12,000 miles, whichever occurs first, subject to AMS warranty terms and exclusions

Product Specs

• Manufacturer: AMS Performance

• Part Number: AMS.46.08.0001-1

• Product Type: Performance Turbo Inlet Tubes

• Factory Inlet Tube Size: Approximately 40mm

• AMS Inlet Tube Size: Approximately 62mm

• Cross-Sectional Area Increase: 140%

• Construction: High-quality molded performance inlet tubing with silicone couplers

• Color: Black

• Finish: OEM-style appearance

• Connections: Retains OEM fittings and line hookups

• Intake Compatibility: Factory intake and most aftermarket intake systems

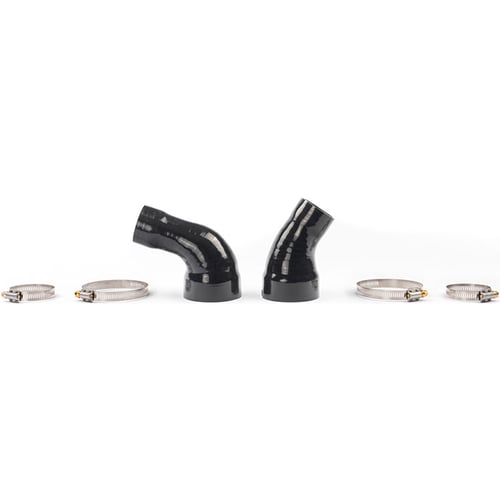

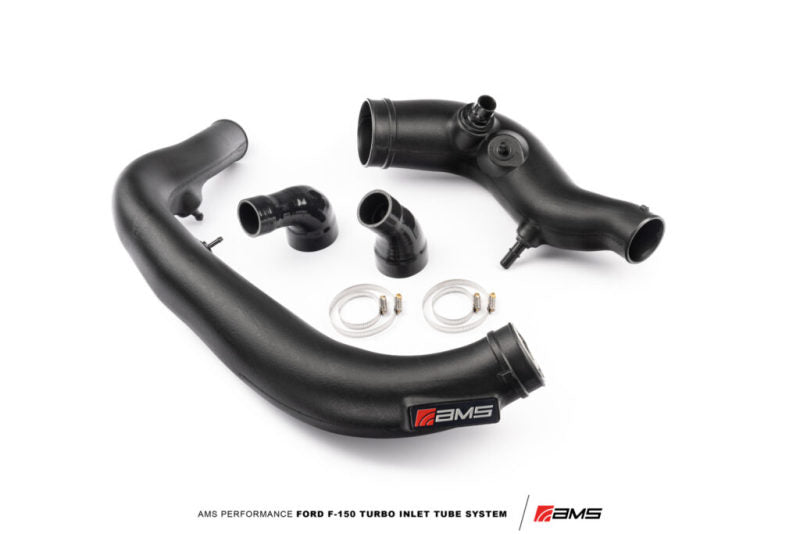

• Included Components: Driver and passenger side inlet tubes, silicone couplers, clamps, fittings, and installation hardware

Install Difficulty Level
Easy to Moderate. Installation is a direct-fit upgrade that retains the factory fittings and connections, and AMS includes the necessary couplers, clamps, and hardware. The turbo inlet locations can be somewhat tight to access, but no major fabrication is required. An experienced installer should plan on approximately 2 hours for installation. Basic hand tools and normal mechanical experience are recommended.

Vehicle Fitment

• 2015 Ford F-150 3.5L EcoBoost V6

• 2016 Ford F-150 3.5L EcoBoost V6

CARB Compliance
CARB and EPA compliance testing has not been completed for AMS Performance part number AMS.46.08.0001-1, and no CARB Executive Order number is currently listed by AMS Performance for this product. This product is not legal for sale or use in California on emissions-controlled vehicles unless applicable requirements and exemptions are satisfied.
