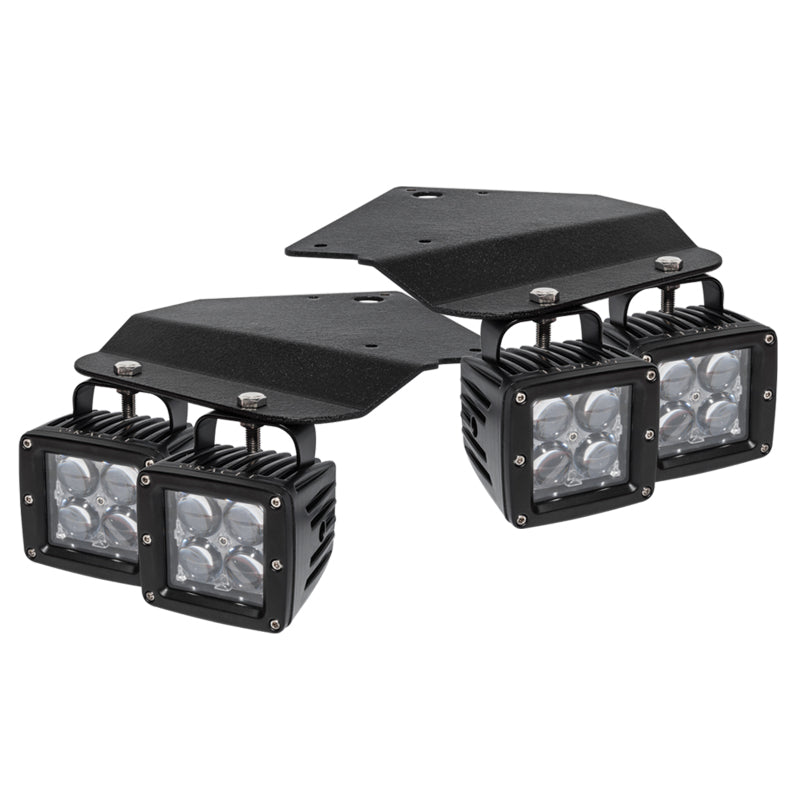

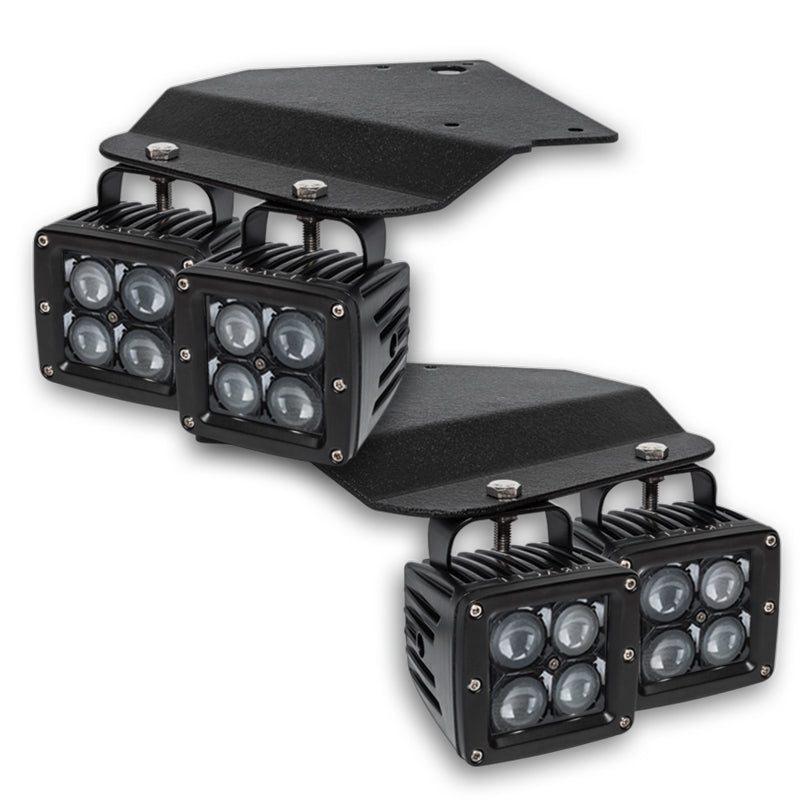

10-14 Ford Raptor Oracle 2149-504 Fog Light Replacement Brackets + Lights Combo

10-14 Ford Raptor Oracle 2149-504 Fog Light Replacement Brackets + Lights Combo

Mount two of the ORACLE Lighting VEGA™ Series 4 LED Light Pod Spotlights to the lower portion of your 2010-2014 Ford Raptor effortlessly with the ORACLE Lighting fog light mount bracket. Specifically designed for these models, this fog light mount bracket allows easy attachment with no modifications required, making it the ideal solution for adding off-road lights to your vehicle. The combo kit includes all necessary components for a hassle-free installation and enhanced off-road visibility, bringing both performance and style to your Ford Raptor.

Key Features

• Complete Kit: Includes brackets and lights for easy installation and enhanced lighting capability.
• Direct Fit: Designed specifically for the 2010-2014 Ford Raptor with no additional modifications necessary.
• Weather Resistant: Coated with a durable, weather-resistant finish to protect against the elements.
• Welded Steel Construction: Provides superior strength and long-lasting durability.
• Premium LED Spotlights: VEGA™ Series 4 LED pods with high-quality OSRAM chips for excellent light output.

Benefits

• Improved Visibility: Spotlights with 4,000 lumens of raw output and a 1,049-foot projection distance enhance off-road driving safety in low-light conditions.
• Rugged Durability: With an IP69K rating, these lights and mounts are built to endure the toughest weather and off-road environments.
• Simple Installation: Includes everything required for a straightforward install with factory bolt hardware—no custom modifications needed.
• Performance Warranty: Backed by a 5-year warranty for peace of mind and reliable, long-lasting performance.
• Enhanced Aesthetic: Adds a bold, rugged look to your Raptor, complementing its aggressive off-road capabilities.

Product Specifications

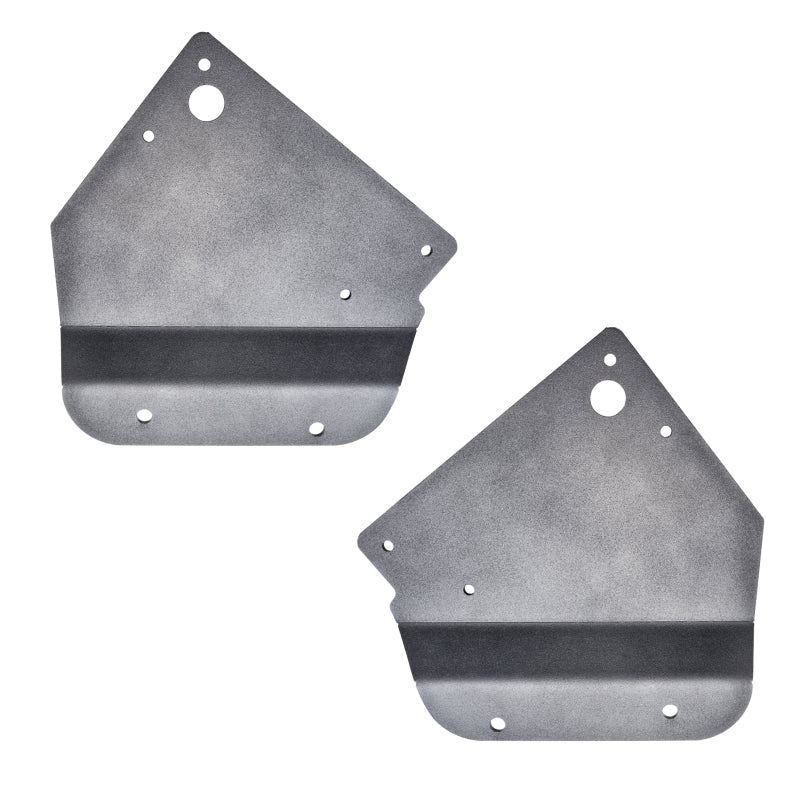

Bracket Specifications

• Weight: 2 lb 11.4 oz
• Dimensions: 9.5" width, 9.25" height, 1" depth
• Material: Welded steel construction with weather-resistant coating
• Mounting: Uses factory bolt hardware for easy installation
• Fitment: Compatible with all 2010-2014 Ford Raptor models

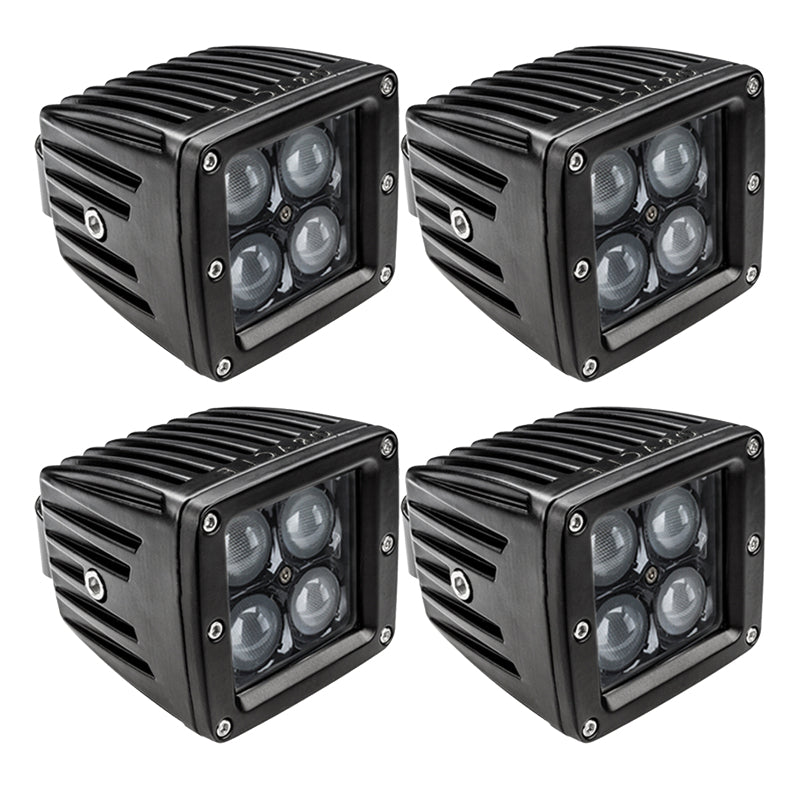

Light Specifications

• Beam Angle: Spotlight
• Power Draw: 1.5A
• LED Chip: OSRAM KW CSLNM1.TG, 40W (10W x 4 LEDs)
• Color Temperature: 6000K
• Operating Temperature: -40°F to 185°F
• Raw Lumens: 4,000 lm
• Candela (10 meters): 99,680 cd
• Lux (10 meters): 996.8 lux
• Projection Distance: 1,049 ft
• Connector Type: Deutsch DT 2-Pin
• Lens Material: Polycarbonate
• Housing Material: Powder-coated aluminum
• Mounting Hardware: 304 stainless steel
• Ingress Protection: IP69K
• Lamp Dimensions: 75mm x 85mm x 82mm
• Lamp Weight: 1.67 lbs
• Warranty: 5-year limited warranty

Install Difficulty Level

The installation of the 10-14 Ford Raptor Oracle 2149-504 Fog Light Replacement Brackets + Lights Combo is designed to be easy and accessible for anyone with basic mechanical skills. Using factory bolt hardware, this kit eliminates the need for complex modifications, making it possible to complete the installation in under an hour. Simply mount the brackets, attach the lights, and connect the wiring—it's that easy!

Vehicle Fitment

• Year Range: 2010-2014
• Make: Ford
• Model: Raptor
• Engine: Compatible with all engine variants for the 2010-2014 Ford Raptor

For questions about this product or to report any inaccuracies in the product description, contact the MPT Performance experts at (407) 636-7077 or by email.
