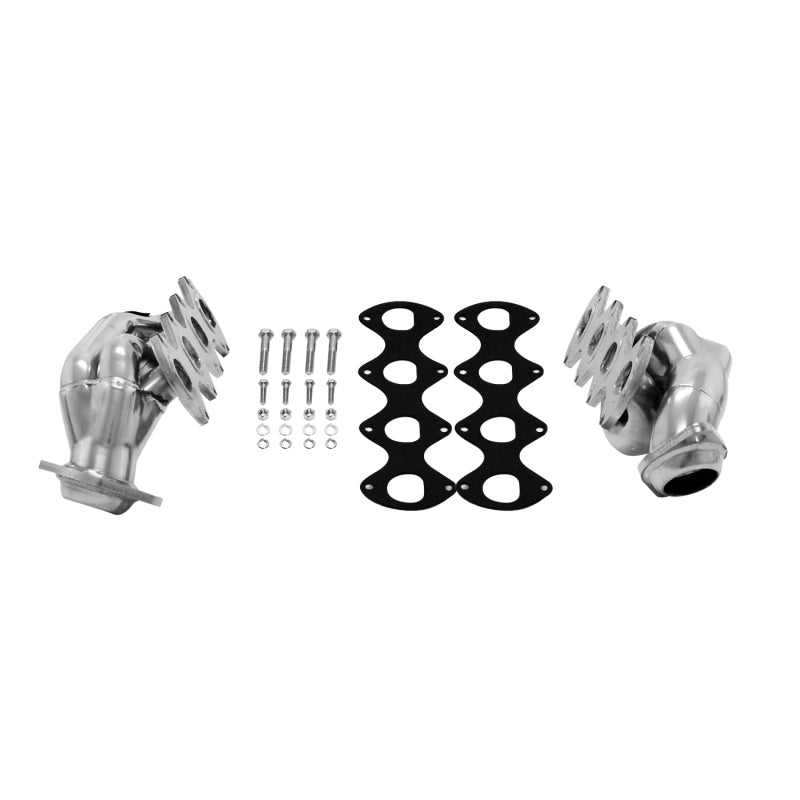

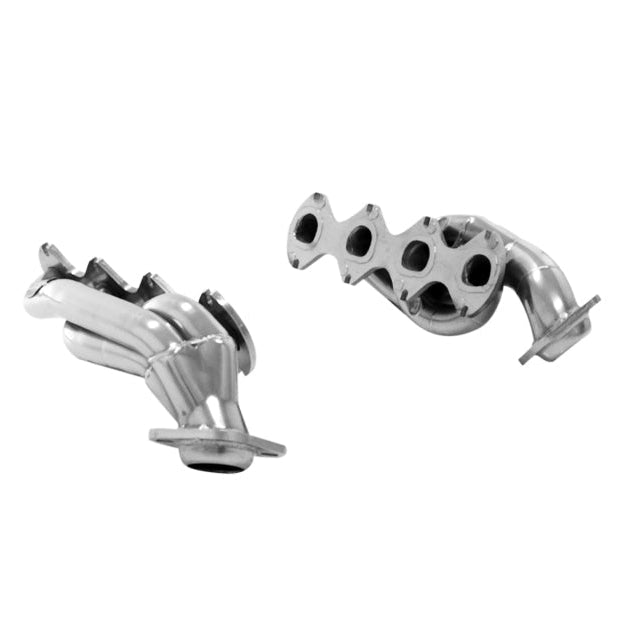

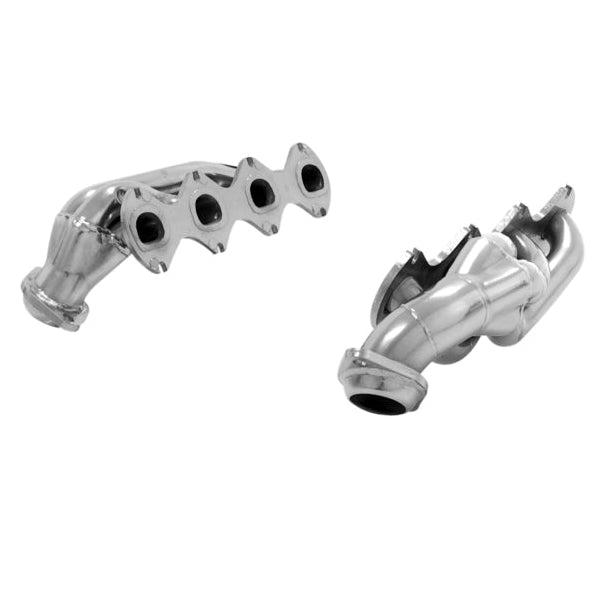

04-10 Ford F-150 5.4L V8 Flowmaster 814226 Scavenger Series Elite Header

Flowmaster Scavenger Series Elite Header 814226

Flowmaster Scavenger Series Elite Shorty Headers are engineered for 2004-2010 Ford F-150 trucks equipped with the 5.4L V8 engine, providing a high-performance upgrade over restrictive factory exhaust manifolds. Designed for improved exhaust flow, these headers help enhance throttle response, engine efficiency, and overall performance while maintaining a direct-fit installation. The 409S stainless steel construction, high-temperature silver ceramic coating, and precision laser-cut flanges provide long-lasting durability and resistance against extreme exhaust temperatures. The shorty header design uses factory-style collector connections for a clean installation and includes gaskets and mounting hardware for added convenience.

Key Features

• Designed to replace restrictive factory exhaust manifolds and improve exhaust flow.
• Dyno tuned for optimized performance gains and improved engine response.
• Constructed from durable 409S stainless steel for long-term reliability.
• High-temperature silver ceramic coating helps protect against heat and corrosion.
• 1-5/8 inch primary tubes designed for efficient exhaust scavenging.
• 3/8 inch thick laser-cut flanges provide a strong sealing surface.
• Factory-style collector connections support a direct-fit installation.
• Includes gaskets and required mounting hardware for easier installation.

Benefits

• Helps increase exhaust flow for improved horsepower potential and throttle response.
• Provides a performance-focused upgrade while retaining factory-style fitment.
• Improves exhaust durability compared to aging factory manifolds.
• Ceramic coating helps manage underhood temperatures and protects the header finish.
• CARB-approved design allows legal use on applicable emissions-controlled vehicles in all 50 states when installed according to the manufacturer application guide.
• Backed by Flowmaster warranty coverage for added confidence in product quality.

Product Specifications

• Part Number: 814226
• Brand: Flowmaster
• Series: Scavenger Series Elite
• Product Type: Performance Exhaust Header
• Header Style: Shorty
• Material: 409S Stainless Steel
• Color: Silver
• Finish: Silver Ceramic Coating
• Primary Tube Diameter: 1-5/8 inch
• Tube Gauge: 16 Gauge
• Flange Thickness: 3/8 inch
• Outlet Diameter: 2.50 inch
• Tube Design: Unequal Length
• Collector Attachment: Ball and Socket Flange
• Collector Included: Yes
• Attachment Method: Flanged
• Gaskets Included: Yes
• Mounting Hardware Included: Yes
• Bolt Size: M8 x 1.25 x 25mm
• Oxygen Sensor Port: No
• EGT Port: No
• CARB EO Number: D-698-18
• UPC: 700042026418

Install Difficulty level
The Flowmaster 814226 Scavenger Series Elite Shorty Headers are designed for a straightforward bolt-on installation and can typically be installed in approximately 2 hours or less by an experienced installer using common hand tools. The direct-fit design, included gaskets, and mounting hardware help simplify the installation process.

Vehicle Fitment

• 2004-2010 Ford F-150
• Engine: 5.4L V8
• Header Type: Shorty Header

CARB Approved
This Flowmaster Scavenger Series Elite Header is CARB approved and carries California Air Resources Board Executive Order D-698-18. The product is legal for sale and use on applicable emissions-controlled vehicles in all 50 states when installed according to the manufacturer's application guide.
